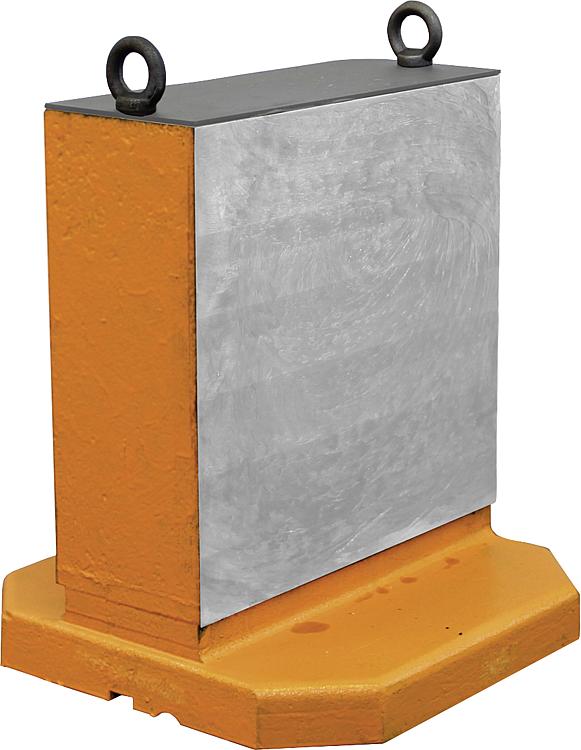

        Tombstones double-sided grey cast iron

Item description/product images

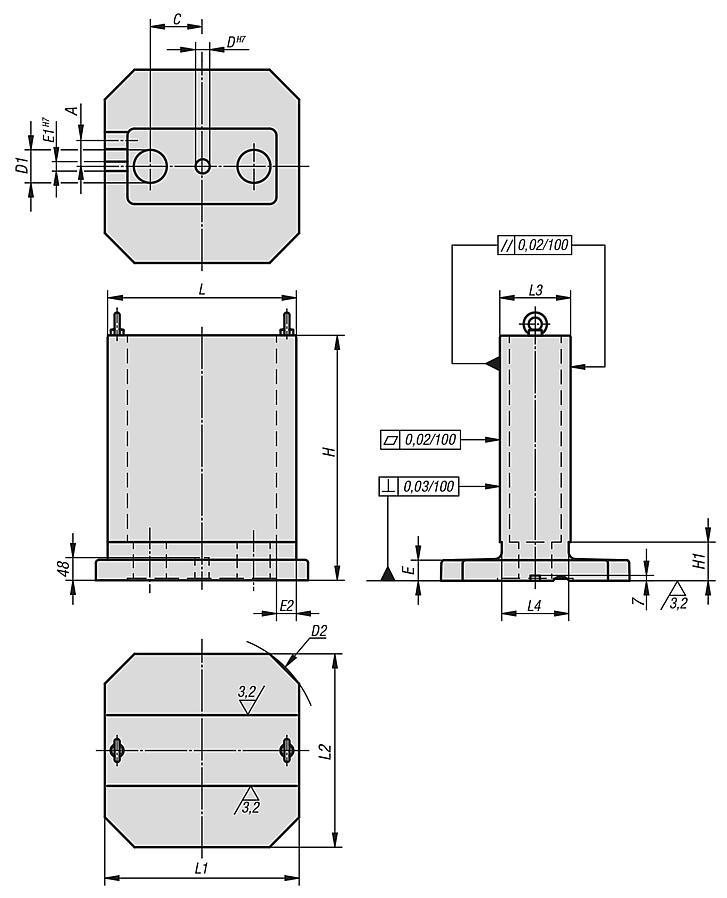

DescriptionMaterial:GJL 250Version:Reference surfaces precision machined.Note:Ring bolts for lifting are supplied. A cover prevents the cavities filling up with swarf.Drawing reference:

machined faces: +0.2 mm/ +0.5 mm
unmachined faces: ±2 mm

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 01270 Tombstones double-sided grey cast iron

177 kB

Drawings

Item selection/filter

Order No.	A	C	D	D1	D2	E	E1	E2	H	H1	L	L1	L2	L3	L4	Price
01270-320125	32,5	75	30	50	400	40	20	40	378	65	320	332	330	125	115	on request
01270-400150	50	120	30	70	500	40	20	42	485	80	400	412	410	150	142	2,688.70 €
01270-500200	55	150	30	100	630	40	20	53	603	90	500	512	510	200	190	3,730.60 €
