86091-20Motion detector PIR sensor 24V DC with A-coded M12 plug/socket |
go back |
|
Item description/product images |
|
|

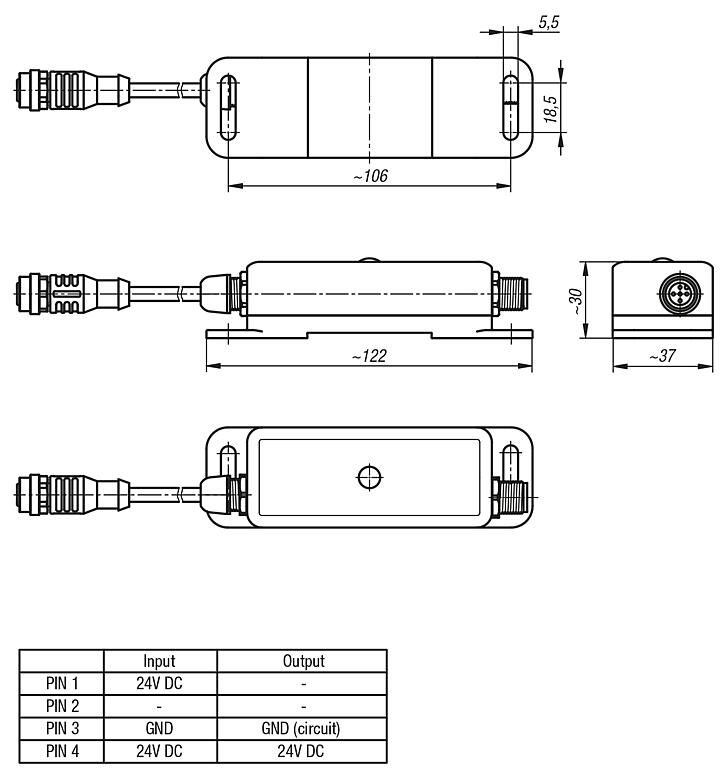

DescriptionMaterial:Housing plastic.Version:Auxiliary device mounted via slotted holes.Note:Motion detector with PIR sensor for intelligent control of 24V DC lamps. The PIR sensor enables energy-efficient lighting control by the automatic motion-activated switching of lamps on and off. With a maximum load capacity of 4.0 A and an IP54 rating, the sensor is ideally suited for indoor use for e.g. automated control cabinet illumination.
Input: M12x1 A-coded connector (3-pin plug).
Output: 150 mm cable with M12x1 A-coded connector (3-pin socket).
Motion activation up to ca. 5 m. Detection in 360° cone with 90° opening angle. Once motion is detected, the connected lamp remains on for 3 minutes.
Certificates / Standards met:
CE.
Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| Version 1 | Operating voltage
V DC | Power
W | Current load
max.
mA | Safety rating | CAD | Acc. | Price | Order |
|---|
| 86091-20-1 | PSE PIR SENSOR | 24+/-10% | 96 | 4000 | IP54 |  | | 0.00 € | |
