        Selector switch, installation version, Ø 22.3 mm flat tab connector, compact

Item description/product images

DescriptionMaterial:Plastic
Contact terminals AgNi.Version:Selector switch black.
Front frame silver.Note:Selector switch, round style with twist grip and integrated contactor and connections for tab plugs (use partially or fully insulated flat sockets)
.

These selector switches have an ergonomic design. Their installation diameter is 22.3 mm and they are easy to install. The selector switches fulfill all relevant standards.

The IP rating applies to the front part.

Certificates / Standards met:
CCC, CE, cURus, DNVGL, ENEC10, VDE, UKCA.
EN 60947-5-1, EN 61058-1.Technical data:Mounting position: arbitrary.
Mechanical lifespan: 30,000 switching cycles.
Electrical lifespan: 30,000 switching cycles at nominal load.Temperature range:Storage temperature: -40 °C to +80 °C.
Operating temperature: -25°C to +70°C.Accessory:Surface-mounted housing 81200, 81200-05.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 81050 Selector switch, installation version, Ø 22.3 mm flat tab connector, compact

370 kB

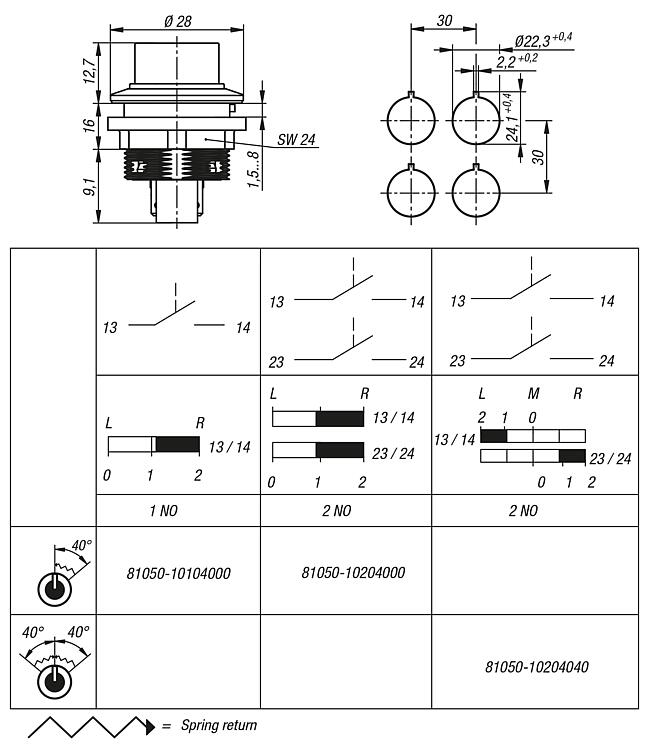

Drawings

Item selection/filter

Order No.	Connection type	No. of NC contacts	No. of NO contacts	Tightening torque Mounting nut Nm	Series	Illuminable
81050-10104000	flat connector 2.8 x 0.5 mm	-	1	1,3-1,9	kompakt	no
81050-10204000	flat connector 2.8 x 0.5 mm	-	2	1,3-1,9	kompakt	no
81050-10204040	flat connector 2.8 x 0.5 mm	-	2	1,3-1,9	kompakt	no

Order No.	Contact resistance m Ohm	Installed Ø	Min. voltage V	Min. current mA	Bounce time ms	Reference number
81050-10104000	<20	22,3	5	1	<10	SSTAI
81050-10204000	<20	22,3	5	1	<10	SSTAII
81050-10204040	<20	22,3	5	1	<10	SSTBII

Order No.	Switching angle	Safety rating	Contamination level	Overvoltage category
81050-10104000	40°	IP65	2	II
81050-10204000	40°	IP65	2	II
81050-10204040	40° links / 40° rechts	IP65	2	II

Other items in this category

Selector switch, snap-type installation version Ø 22.3 mm
tab pluc connector, compact

Amount:

0.00 €

shopping cart

Quick order / Check availabilityOrder article directly or check availability.display

Sitemap

Recommended

Top

Tel. +49 71 45/206-44 to 45 · Fax +49 71 45/206-83

Selector switch, installation version, Ø 22.3 mm flat tab...

Item description/product images

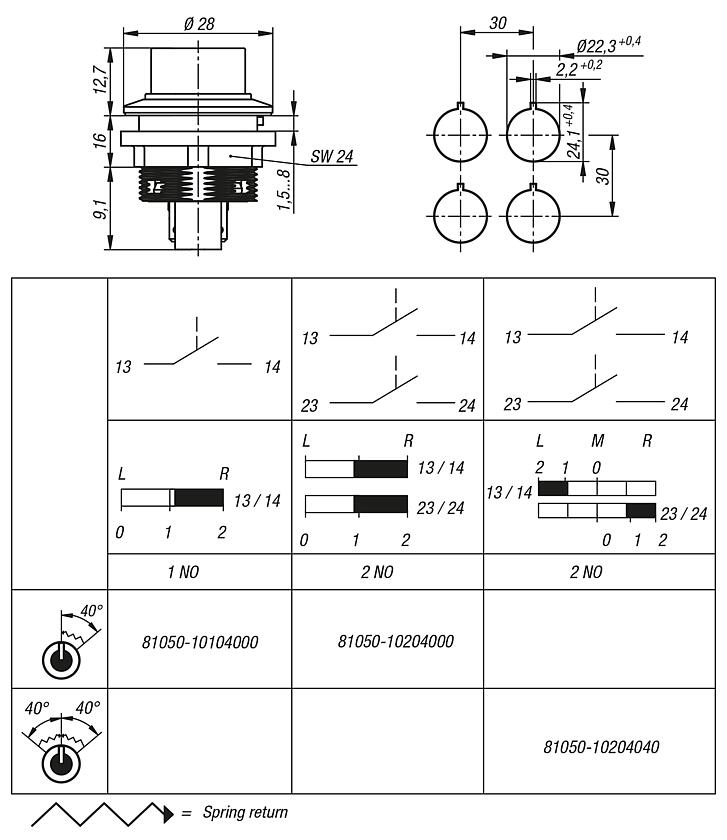

Drawings
