        Clamping levers, die-cast zinc with internal thread, threaded insert blue passivated steel
        Clamping levers, zinc, with internal thread, threaded insert blue passivated steel, satin finish

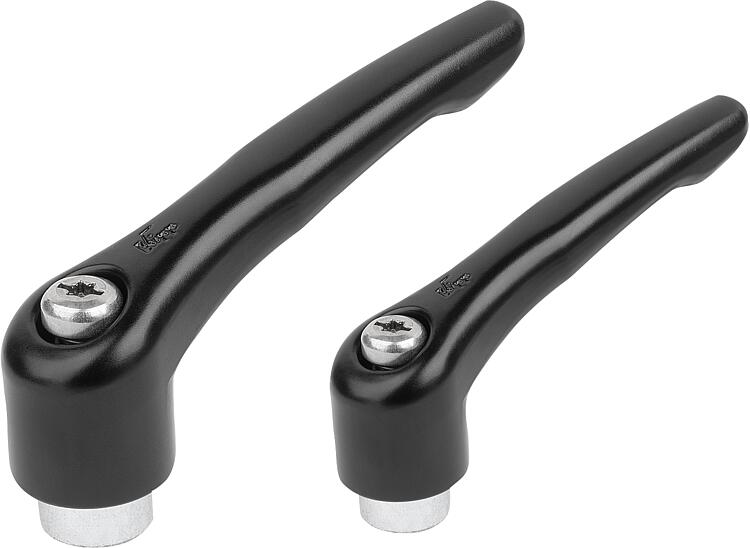

Item description/product images

DescriptionMaterial:Handle die-cast zinc DIN EN 12844.
Steel parts grade 5.8.Version:Handle powder-coated.
Steel parts trivalent blue-passivated.On request:Other threads, colours and special versions.
Dimension “H1” available in other lengths at extra charge.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06450-05_SE Clamping levers, zinc with internal thread, steel parts trivalent blue passivated, satin finish

203 kB

Drawings

Item selection/filter

Order No.	Main colour	Surface finish body	Size	X	T	D	D1	D2	H	H1	H2	H3	H4	A	A1	B	No. of teeth	Price
06450-05-9031	jet black RAL 9005	satin finish	9	M3	6	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	4.92 €
06450-05-9041	jet black RAL 9005	satin finish	9	M4	6	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	4.92 €
06450-05-9051	jet black RAL 9005	satin finish	9	M5	6	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	4.92 €
06450-05-0031	jet black RAL 9005	satin finish	0	M3	9	10	13	14	24,5	4	14,5	30	33	30	37	7	16	5.19 €
06450-05-0041	jet black RAL 9005	satin finish	0	M4	9	10	13	14	24,5	4	14,5	30	33	30	37	7	16	5.19 €
06450-05-0051	jet black RAL 9005	satin finish	0	M5	9	10	13	14	24,5	4	14,5	30	33	30	37	7	16	5.19 €
06450-05-1041	jet black RAL 9005	satin finish	1	M4	9	10	13	14	24,5	4	14,5	31	34	40	47	7	16	5.19 €
06450-05-1051	jet black RAL 9005	satin finish	1	M5	9	10	13	14	24,5	4	14,5	31	34	40	47	7	16	5.19 €
06450-05-1061	jet black RAL 9005	satin finish	1	M6	9	10	13	14	24,5	4	14,5	31	34	40	47	7	16	5.19 €
06450-05-2061	jet black RAL 9005	satin finish	2	M6	12	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	6.52 €
06450-05-2081	jet black RAL 9005	satin finish	2	M8	12	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	6.52 €
06450-05-3081	jet black RAL 9005	satin finish	3	M8	14	16	21	22	37	10	24	54,5	58,5	80	91	11	22	7.12 €
06450-05-3101	jet black RAL 9005	satin finish	3	M10	14	16	21	22	37	10	24	54,5	58,5	80	91	11	22	7.12 €
06450-05-4101	jet black RAL 9005	satin finish	4	M10	17	19	27	27,5	43	10	27	63	67,5	95	109	13	24	8.33 €
06450-05-4121	jet black RAL 9005	satin finish	4	M12	17	19	27	27,5	43	10	27	63	67,5	95	109	13	24	8.33 €
06450-05-5121	jet black RAL 9005	satin finish	5	M12	23	23	31	32	49	12	31,5	73	77,5	110	126	15	26	10.41 €
06450-05-5161	jet black RAL 9005	satin finish	5	M16	23	23	31	32	49	12	31,5	73	77,5	110	126	15	26	10.41 €
