06360 inchBroche série longue, pouces |
retour |
|
|
DescriptionMatière :Poignée plastique thermodurcissable PF 31.
tige en acier ou inox 1.4305. Finition :Plastique thermodurcissable noir, poli brillant.
Acier bruni ou inox naturel.Nota :Pour la gamme en pouces, la dimension D1 est indiquée en pouces, toutes les autres dimensions étant en mm. TéléchargementLes informations sont ici réunies sous forme de fichier PDF :
Vous cherchez les données CAO ? Vous les trouverez directement dans le tableau produit.
|
Sélection/filtre d'articles |
|
| Référence | Matière
du corps
de base | Forme
| D | D1 | D2 | L | L1 | L2 | CAO | Acc. | Prix | Commander |
|---|

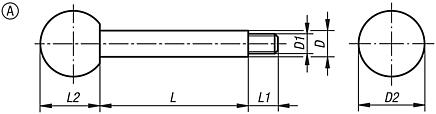

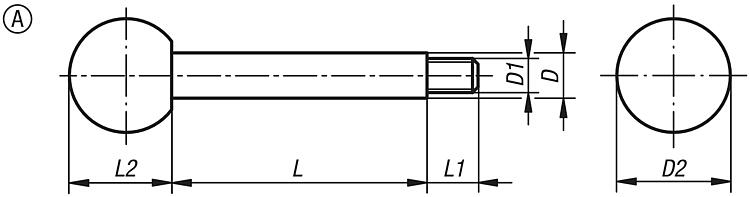

| 06360-2A2X35 | acier | A | 8 | 1/4-20 | 20 | 35 | 9 | 18 |  | | 3,84 € | | | 06360-2A2X50 | acier | A | 8 | 1/4-20 | 20 | 50 | 9 | 18 | | | 3,84 € | | | 06360-2A2X65 | acier | A | 8 | 1/4-20 | 20 | 65 | 9 | 18 | | | 3,99 € | | | 06360-2A3X50 | acier | A | 10 | 5/16-18 | 25 | 50 | 13 | 22,5 | | | 4,32 € | | | 06360-2A3X65 | acier | A | 10 | 5/16-18 | 25 | 65 | 13 | 22,5 | | | 4,40 € | | | 06360-2A3X80 | acier | A | 10 | 5/16-18 | 25 | 80 | 13 | 22,5 | | | 4,51 € | | | 06360-2A3X100 | acier | A | 10 | 5/16-18 | 25 | 100 | 13 | 22,5 | | | 5,13 € | | | 06360-2A4X65 | acier | A | 12 | 3/8-16 | 32 | 65 | 15 | 29 | | | 5,37 € | | | 06360-2A4X80 | acier | A | 12 | 3/8-16 | 32 | 80 | 15 | 29 | | | 5,37 € | | | 06360-2A4X100 | acier | A | 12 | 3/8-16 | 32 | 100 | 15 | 29 | | | 5,74 € | | | 06360-2A4X125 | acier | A | 12 | 3/8-16 | 32 | 125 | 15 | 29 | | | 5,93 € | | | 06360-2A5X80 | acier | A | 14 | 1/2-13 | 36 | 80 | 16 | 33 | | | 6,89 € | | | 06360-2A5X100 | acier | A | 14 | 1/2-13 | 36 | 100 | 16 | 33 | | | 7,15 € | | | 06360-2A5X125 | acier | A | 14 | 1/2-13 | 36 | 125 | 16 | 33 | | | 7,36 € | | | 06360-2A5X160 | acier | A | 14 | 1/2-13 | 36 | 160 | 16 | 33 | | | 7,91 € | | | 06360-12A2X35 | acier inoxydable | A | 8 | 1/4-20 | 20 | 35 | 9 | 18 | | | 4,51 € | | | 06360-12A2X50 | acier inoxydable | A | 8 | 1/4-20 | 20 | 50 | 9 | 18 | | | 4,67 € | | | 06360-12A2X65 | acier inoxydable | A | 8 | 1/4-20 | 20 | 65 | 9 | 18 | | | 4,92 € | | | 06360-12A3X50 | acier inoxydable | A | 10 | 5/16-18 | 25 | 50 | 13 | 22,5 | | | 4,67 € | | | 06360-12A3X65 | acier inoxydable | A | 10 | 5/16-18 | 25 | 65 | 13 | 22,5 | | | 4,92 € | | | 06360-12A3X80 | acier inoxydable | A | 10 | 5/16-18 | 25 | 80 | 13 | 22,5 | | | 6,11 € | | | 06360-12A3X100 | acier inoxydable | A | 10 | 5/16-18 | 25 | 100 | 13 | 22,5 | | | 6,56 € | | | 06360-12A4X65 | acier inoxydable | A | 12 | 3/8-16 | 32 | 65 | 15 | 29 | | | 5,75 € | | | 06360-12A4X80 | acier inoxydable | A | 12 | 3/8-16 | 32 | 80 | 15 | 29 | | | 6,11 € | | | 06360-12A4X100 | acier inoxydable | A | 12 | 3/8-16 | 32 | 100 | 15 | 29 | | | 8,03 € | | | 06360-12A4X125 | acier inoxydable | A | 12 | 3/8-16 | 32 | 125 | 15 | 29 | | | 8,53 € | | | 06360-12A5X80 | acier inoxydable | A | 14 | 1/2-13 | 36 | 80 | 16 | 33 | | | 7,49 € | | | 06360-12A5X100 | acier inoxydable | A | 14 | 1/2-13 | 36 | 100 | 16 | 33 | | | 8,03 € | | | 06360-12A5X125 | acier inoxydable | A | 14 | 1/2-13 | 36 | 125 | 16 | 33 | | | 8,53 € | | | 06360-12A5X160 | acier inoxydable | A | 14 | 1/2-13 | 36 | 160 | 16 | 33 | | | 12,65 € | |
|
Sélection/filtre d'articles |
|
| Référence | Matière
du corps
de base | Forme | D
| D1 | D2 | L | L1 | L2 | CAO | Acc. | Prix | Commander |
|---|

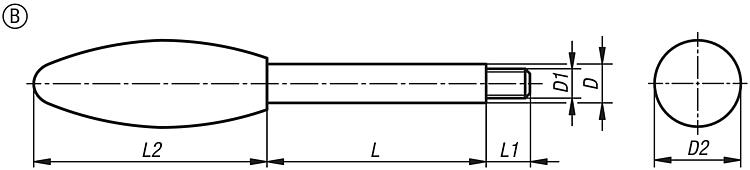

| 06360-7A2X35 | acier | B | 8 | 1/4-20 | 23 | 35 | 9 | 60 | | | 5,38 € | | | 06360-7A2X50 | acier | B | 8 | 1/4-20 | 23 | 50 | 9 | 60 | | | 5,38 € | | | 06360-7A2X65 | acier | B | 8 | 1/4-20 | 23 | 65 | 9 | 60 | | | 5,64 € | | | 06360-7A3X50 | acier | B | 10 | 5/16-18 | 26 | 50 | 13 | 70 | | | 5,89 € | | | 06360-7A3X65 | acier | B | 10 | 5/16-18 | 26 | 65 | 13 | 70 | | | 6,15 € | | | 06360-7A3X80 | acier | B | 10 | 5/16-18 | 26 | 80 | 13 | 70 | | | 6,64 € | | | 06360-7A3X100 | acier | B | 10 | 5/16-18 | 26 | 100 | 13 | 70 | | | 7,07 € | | | 06360-7A4X65 | acier | B | 12 | 3/8-16 | 35 | 65 | 15 | 85 | | | 6,89 € | | | 06360-7A4X80 | acier | B | 12 | 3/8-16 | 35 | 80 | 15 | 85 | | | 7,20 € | | | 06360-7A4X100 | acier | B | 12 | 3/8-16 | 35 | 100 | 15 | 85 | | | 7,72 € | | | 06360-7A4X125 | acier | B | 12 | 3/8-16 | 35 | 125 | 15 | 85 | | | 8,74 € | | | 06360-7A5X80 | acier | B | 14 | 1/2-13 | 35 | 80 | 16 | 85 | | | 8,67 € | | | 06360-7A5X100 | acier | B | 14 | 1/2-13 | 35 | 100 | 16 | 85 | | | 8,76 € | | | 06360-7A5X125 | acier | B | 14 | 1/2-13 | 35 | 125 | 16 | 85 | | | 9,18 € | | | 06360-7A5X160 | acier | B | 14 | 1/2-13 | 35 | 160 | 16 | 85 | | | 9,73 € | | | 06360-17A2X35 | acier inoxydable | B | 8 | 1/4-20 | 23 | 35 | 9 | 60 | | | 6,90 € | | | 06360-17A2X50 | acier inoxydable | B | 8 | 1/4-20 | 23 | 50 | 9 | 60 | | | 7,15 € | | | 06360-17A2X65 | acier inoxydable | B | 8 | 1/4-20 | 23 | 65 | 9 | 60 | | | 7,64 € | | | 06360-17A3X50 | acier inoxydable | B | 10 | 5/16-18 | 26 | 50 | 13 | 70 | | | 8,36 € | | | 06360-17A3X65 | acier inoxydable | B | 10 | 5/16-18 | 26 | 65 | 13 | 70 | | | 8,53 € | | | 06360-17A3X80 | acier inoxydable | B | 10 | 5/16-18 | 26 | 80 | 13 | 70 | | | 10,10 € | | | 06360-17A3X100 | acier inoxydable | B | 10 | 5/16-18 | 26 | 100 | 13 | 70 | | | 10,40 € | | | 06360-17A4X65 | acier inoxydable | B | 12 | 3/8-16 | 35 | 65 | 15 | 85 | | | 9,90 € | | | 06360-17A4X80 | acier inoxydable | B | 12 | 3/8-16 | 35 | 80 | 15 | 85 | | | 10,43 € | | | 06360-17A4X100 | acier inoxydable | B | 12 | 3/8-16 | 35 | 100 | 15 | 85 | | | 10,97 € | | | 06360-17A4X125 | acier inoxydable | B | 12 | 3/8-16 | 35 | 125 | 15 | 85 | | | 11,98 € | | | 06360-17A5X80 | acier inoxydable | B | 14 | 1/2-13 | 35 | 80 | 16 | 85 | | | 12,83 € | | | 06360-17A5X100 | acier inoxydable | B | 14 | 1/2-13 | 35 | 100 | 16 | 85 | | | 13,34 € | | | 06360-17A5X125 | acier inoxydable | B | 14 | 1/2-13 | 35 | 125 | 16 | 85 | | | 13,60 € | | | 06360-17A5X160 | acier inoxydable | B | 14 | 1/2-13 | 35 | 160 | 16 | 85 | | | 17,25 € | |
|
Sélection/filtre d'articles |
|
| Référence | Matière
du corps
de base | Forme | D | D1 | D2 | L | L1 | L2 | CAO | Acc. | Prix | Commander |
|---|

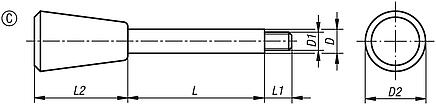

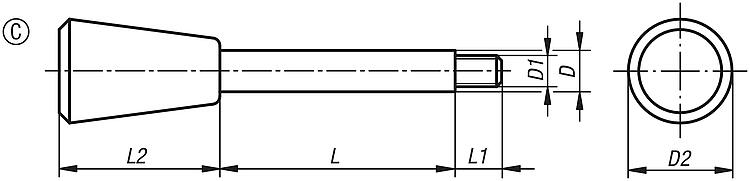

| 06360-4A2X35 | acier | C | 8 | 1/4-20 | 20 | 35 | 9 | 31 | | | 5,68 € | | | 06360-4A2X50 | acier | C | 8 | 1/4-20 | 20 | 50 | 9 | 31 | | | 5,73 € | | | 06360-4A2X65 | acier | C | 8 | 1/4-20 | 20 | 65 | 9 | 31 | | | 5,80 € | | | 06360-4A3X50 | acier | C | 10 | 5/16-18 | 25 | 50 | 13 | 38 | | | 5,93 € | | | 06360-4A3X65 | acier | C | 10 | 5/16-18 | 25 | 65 | 13 | 38 | | | 6,18 € | | | 06360-4A3X80 | acier | C | 10 | 5/16-18 | 25 | 80 | 13 | 38 | | | 6,31 € | | | 06360-4A3X100 | acier | C | 10 | 5/16-18 | 25 | 100 | 13 | 38 | | | 6,75 € | | | 06360-4A4X65 | acier | C | 12 | 3/8-16 | 30 | 65 | 15 | 46 | | | 6,62 € | | | 06360-4A4X80 | acier | C | 12 | 3/8-16 | 30 | 80 | 15 | 46 | | | 6,81 € | | | 06360-4A4X100 | acier | C | 12 | 3/8-16 | 30 | 100 | 15 | 46 | | | 7,10 € | | | 06360-4A4X125 | acier | C | 12 | 3/8-16 | 30 | 125 | 15 | 46 | | | 8,36 € | | | 06360-4A5X80 | acier | C | 14 | 1/2-13 | 35 | 80 | 16 | 53 | | | 8,52 € | | | 06360-4A5X100 | acier | C | 14 | 1/2-13 | 35 | 100 | 16 | 53 | | | 8,54 € | | | 06360-4A5X125 | acier | C | 14 | 1/2-13 | 35 | 125 | 16 | 53 | | | 9,07 € | | | 06360-4A5X160 | acier | C | 14 | 1/2-13 | 35 | 160 | 16 | 53 | | | 9,21 € | | | 06360-14A2X35 | acier inoxydable | C | 8 | 1/4-20 | 20 | 35 | 9 | 31 | | | 6,79 € | | | 06360-14A2X50 | acier inoxydable | C | 8 | 1/4-20 | 20 | 50 | 9 | 31 | | | 7,05 € | | | 06360-14A2X65 | acier inoxydable | C | 8 | 1/4-20 | 20 | 65 | 9 | 31 | | | 7,22 € | | | 06360-14A3X50 | acier inoxydable | C | 10 | 5/16-18 | 25 | 50 | 13 | 38 | | | 7,05 € | | | 06360-14A3X65 | acier inoxydable | C | 10 | 5/16-18 | 25 | 65 | 13 | 38 | | | 7,22 € | | | 06360-14A3X80 | acier inoxydable | C | 10 | 5/16-18 | 25 | 80 | 13 | 38 | | | 7,91 € | | | 06360-14A3X100 | acier inoxydable | C | 10 | 5/16-18 | 25 | 100 | 13 | 38 | | | 8,10 € | | | 06360-14A4X65 | acier inoxydable | C | 12 | 3/8-16 | 30 | 65 | 15 | 46 | | | 7,69 € | | | 06360-14A4X80 | acier inoxydable | C | 12 | 3/8-16 | 30 | 80 | 15 | 46 | | | 7,91 € | | | 06360-14A4X100 | acier inoxydable | C | 12 | 3/8-16 | 30 | 100 | 15 | 46 | | | 8,10 € | | | 06360-14A4X125 | acier inoxydable | C | 12 | 3/8-16 | 30 | 125 | 15 | 46 | | | 10,49 € | | | 06360-14A5X80 | acier inoxydable | C | 14 | 1/2-13 | 35 | 80 | 16 | 53 | | | 8,66 € | | | 06360-14A5X100 | acier inoxydable | C | 14 | 1/2-13 | 35 | 100 | 16 | 53 | | | 9,21 € | | | 06360-14A5X125 | acier inoxydable | C | 14 | 1/2-13 | 35 | 125 | 16 | 53 | | | 10,49 € | | | 06360-14A5X160 | acier inoxydable | C | 14 | 1/2-13 | 35 | 160 | 16 | 53 | | | 17,10 € | |
|
Sélection/filtre d'articles |
|
| Référence | Finition
| Forme
| D | D1 | D2 | L | L1 | L2 | CAO | Acc. | Prix | Commander |
|---|

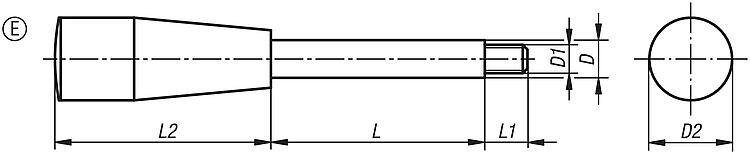

| 06360-6A2X35 | acier | E | 8 | 1/4-20 | 17 | 35 | 9 | 45 | | | 5,69 € | | | 06360-6A2X50 | acier | E | 8 | 1/4-20 | 17 | 50 | 9 | 45 | | | 5,69 € | | | 06360-6A2X65 | acier | E | 8 | 1/4-20 | 17 | 65 | 9 | 45 | | | 5,93 € | | | 06360-6A3X50 | acier | E | 10 | 5/16-18 | 23 | 50 | 13 | 61 | | | 6,20 € | | | 06360-6A3X65 | acier | E | 10 | 5/16-18 | 23 | 65 | 13 | 61 | | | 6,49 € | | | 06360-6A3X80 | acier | E | 10 | 5/16-18 | 23 | 80 | 13 | 61 | | | 7,00 € | | | 06360-6A3X100 | acier | E | 10 | 5/16-18 | 23 | 100 | 13 | 61 | | | 7,43 € | | | 06360-6A4X65 | acier | E | 12 | 3/8-16 | 29 | 65 | 15 | 71 | | | 7,23 € | | | 06360-6A4X80 | acier | E | 12 | 3/8-16 | 29 | 80 | 15 | 71 | | | 7,59 € | | | 06360-6A4X100 | acier | E | 12 | 3/8-16 | 29 | 100 | 15 | 71 | | | 8,11 € | | | 06360-6A4X125 | acier | E | 12 | 3/8-16 | 29 | 125 | 15 | 71 | | | 9,19 € | | | 06360-6A5X80 | acier | E | 14 | 1/2-13 | 29 | 80 | 16 | 71 | | | 9,13 € | | | 06360-6A5X100 | acier | E | 14 | 1/2-13 | 29 | 100 | 16 | 71 | | | 9,21 € | | | 06360-6A5X125 | acier | E | 14 | 1/2-13 | 29 | 125 | 16 | 71 | | | 9,67 € | | | 06360-6A5X160 | acier | E | 14 | 1/2-13 | 29 | 160 | 16 | 71 | | | 10,24 € | | | 06360-16A2X35 | acier inoxydable | E | 8 | 1/4-20 | 17 | 35 | 9 | 45 | | | 7,25 € | | | 06360-16A2X50 | acier inoxydable | E | 8 | 1/4-20 | 17 | 50 | 9 | 45 | | | 7,56 € | | | 06360-16A2X65 | acier inoxydable | E | 8 | 1/4-20 | 17 | 65 | 9 | 45 | | | 8,03 € | | | 06360-16A3X50 | acier inoxydable | E | 10 | 5/16-18 | 23 | 50 | 13 | 61 | | | 7,56 € | | | 06360-16A3X65 | acier inoxydable | E | 10 | 5/16-18 | 23 | 65 | 13 | 61 | | | 8,03 € | | | 06360-16A3X80 | acier inoxydable | E | 10 | 5/16-18 | 23 | 80 | 13 | 61 | | | 10,64 € | | | 06360-16A3X100 | acier inoxydable | E | 10 | 5/16-18 | 23 | 100 | 13 | 61 | | | 10,95 € | | | 06360-16A4X65 | acier inoxydable | E | 12 | 3/8-16 | 29 | 65 | 15 | 71 | | | 10,43 € | | | 06360-16A4X80 | acier inoxydable | E | 12 | 3/8-16 | 29 | 80 | 15 | 71 | | | 10,64 € | | | 06360-16A4X100 | acier inoxydable | E | 12 | 3/8-16 | 29 | 100 | 15 | 71 | | | 10,95 € | | | 06360-16A4X125 | acier inoxydable | E | 12 | 3/8-16 | 29 | 125 | 15 | 71 | | | 12,64 € | | | 06360-16A5X80 | acier inoxydable | E | 14 | 1/2-13 | 29 | 80 | 16 | 71 | | | 10,97 € | | | 06360-16A5X100 | acier inoxydable | E | 14 | 1/2-13 | 29 | 100 | 16 | 71 | | | 11,57 € | | | 06360-16A5X125 | acier inoxydable | E | 14 | 1/2-13 | 29 | 125 | 16 | 71 | | | 12,64 € | | | 06360-16A5X160 | acier inoxydable | E | 14 | 1/2-13 | 29 | 160 | 16 | 71 | | | 18,17 € | |
|
