        Steel plate swivel and fixed castors with steel wire reinforced elastic solid rubber tyres, heavy duty version
        Steel plate swivel castors with steel wire reinforced elastic solid rubber tyres, heavy duty version

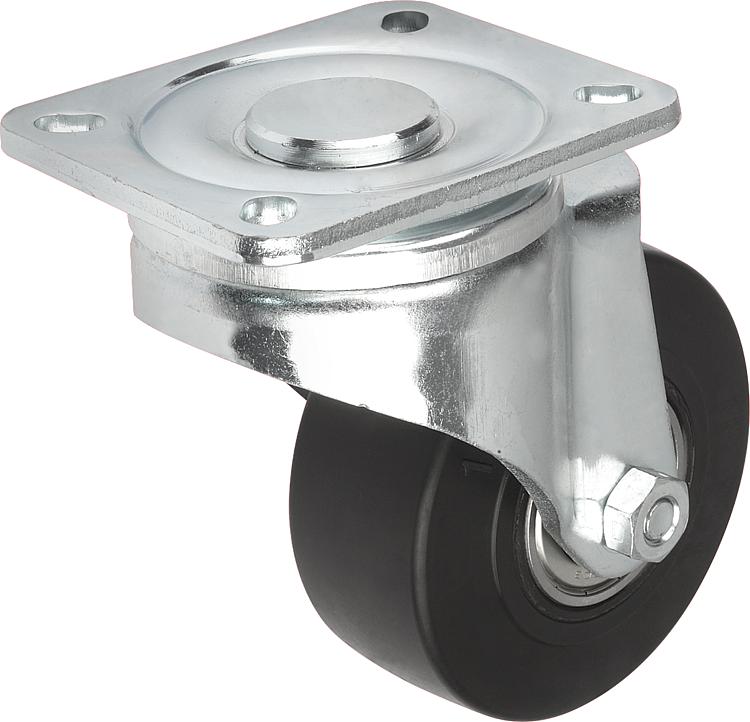

Item description/product images

DescriptionMaterial:Housing thick steel plate.
Tyres steel-wire reinforced elastic solid rubber.
Wheel body welded steel.Version:Housing press formed.
Reinforced fork, base plate and centre pin.
Double ball bearing with hardened shells in the castor head.
Precision ball bearings in the wheels.Note:These castors are particularly impact and shock proof and assure a high service life.
Wheel axle bolted.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 95020_L Swivel castors

202 kB

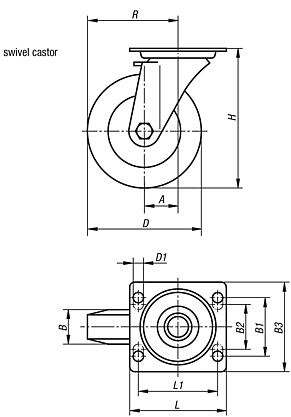

Drawings

Item selection/filter

Order No.	Item	Version 1	Wheel bearing	A	B	B1	B2	B3	D	D1	H	L	L1	R	Permissible load kg	Price
95020-10040	Swivel castor	without locking system	ball bearing	45	40	60	-	85	100	9	140	100	80	95	180	111.70 €
95020-12550	Swivel castor	without locking system	ball bearing	55	50	80	75	110	125	11	170	140	105	117,5	280	143.67 €
95020-16050	Swivel castor	without locking system	ball bearing	65	50	80	75	110	160	11	202	140	105	145	400	190.57 €
95020-20050	Swivel castor	without locking system	ball bearing	70	50	80	75	110	200	11	245	140	105	170	500	208.18 €
95020-25060	Swivel castor	without locking system	ball bearing	82	60	80	75	110	250	11	295	140	105	207	700	287.60 €
