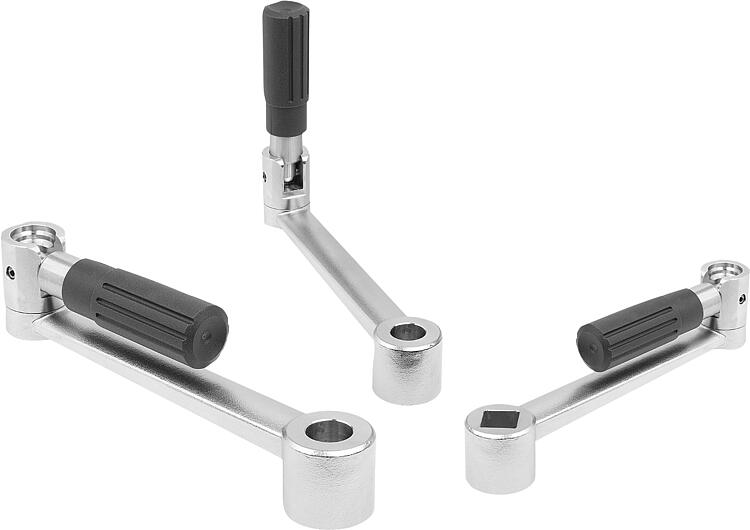

06507Crank handles stainless steel with fold-away grip |
go back |
|
|
DescriptionMaterial:Crank stainless steel 1.4308.
Cylindrical grip thermoplastic and stainless steel 1.4404. Version:Crank bright.
Thermoplastic black grey.
Stainless steel bright.Note:Similar to DIN 469.
Versions with transverse bore are secured using the ISO 4027 (DIN 914) grub screw.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

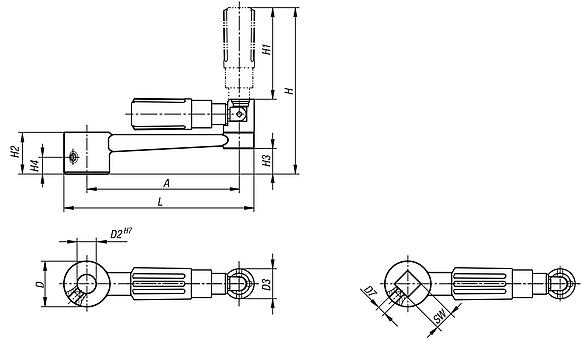

Drawings (total overview) |

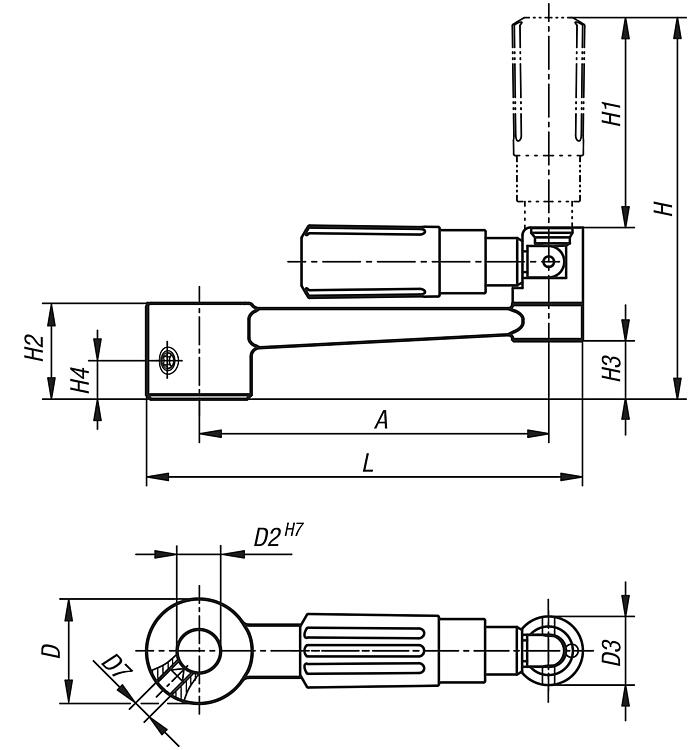

Crank handles stainless steel with fold-away grip and reamed hole |
More information |
| Order No. | Version 1 | Version 2 | A | D
| D2 | D3 | D7 | H | H1 | H2 | H3 | H4 | L | CAD | Acc. | Price | Order |
|---|
| 06507-1110 | reamed hole | without transverse hole | 80 | 24 | 10 | 16 | - | 89 | 49 | 22 | 13,4 | - | 100 |  | | 52.88 € | | | 06507-1212 | reamed hole | without transverse hole | 100 | 28 | 12 | 20 | - | 108 | 59,5 | 26 | 16 | - | 124 | | | 58.19 € | | | 06507-1314 | reamed hole | without transverse hole | 125 | 30 | 14 | 26 | - | 140 | 83 | 28 | 15,8 | - | 153 | | | 66.24 € | | | 06507-1417 | reamed hole | without transverse hole | 160 | 34 | 17 | 26 | - | 144 | 83 | 32 | 19,6 | - | 190 | | | 74.90 € | | | 06507-11106 | reamed hole | with transverse bore | 80 | 24 | 10 | 16 | M6 | 89 | 49 | 22 | 13,4 | 7,5 | 100 | | | 58.82 € | | | 06507-12126 | reamed hole | with transverse bore | 100 | 28 | 12 | 20 | M6 | 108 | 59,5 | 26 | 16 | 7,5 | 124 | | | 64.14 € | | | 06507-13146 | reamed hole | with transverse bore | 125 | 30 | 14 | 26 | M6 | 140 | 83 | 28 | 15,8 | 7,5 | 153 | | | 72.19 € | | | 06507-14176 | reamed hole | with transverse bore | 160 | 34 | 17 | 26 | M6 | 144 | 83 | 32 | 19,6 | 7,5 | 190 | | | 80.85 € | |
|

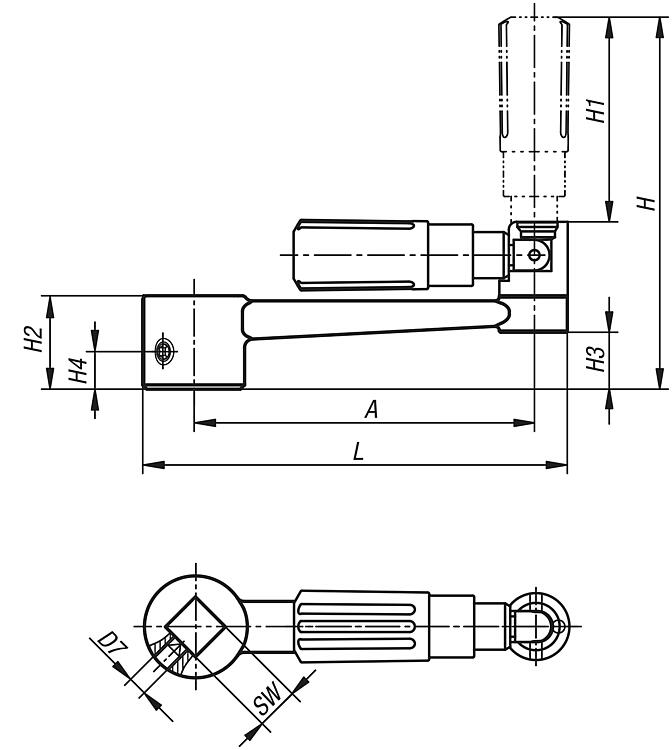

Crank handles stainless steel with fold-away grip and square socket |
More information |
| Order No. | Version 1 | Version 2 | A | D
| D3 | D7 | H | H1 | H2 | H3 | H4 | L | SW | CAD | Acc. | Price | Order |
|---|
| 06507-2110 | square socket | without transverse hole | 80 | 24 | 16 | - | 89 | 49 | 22 | 13,4 | - | 100 | 10 | | | 55.80 € | | | 06507-2212 | square socket | without transverse hole | 100 | 28 | 20 | - | 108 | 59,5 | 26 | 16 | - | 124 | 12 | | | 62.73 € | | | 06507-2314 | square socket | without transverse hole | 125 | 30 | 26 | - | 140 | 83 | 28 | 15,8 | - | 153 | 14 | | | 69.20 € | | | 06507-2417 | square socket | without transverse hole | 160 | 34 | 26 | - | 144 | 83 | 32 | 19,6 | - | 190 | 17 | | | 76.92 € | | | 06507-21106 | square socket | with transverse bore | 80 | 24 | 16 | M6 | 89 | 49 | 22 | 13,4 | 7,5 | 100 | 10 | | | 61.74 € | | | 06507-22126 | square socket | with transverse bore | 100 | 28 | 20 | M6 | 108 | 59,5 | 26 | 16 | 7,5 | 124 | 12 | | | 68.68 € | | | 06507-23146 | square socket | with transverse bore | 125 | 30 | 26 | M6 | 140 | 83 | 28 | 15,8 | 7,5 | 153 | 14 | | | 75.14 € | | | 06507-24176 | square socket | with transverse bore | 160 | 34 | 26 | M6 | 144 | 83 | 32 | 19,6 | 7,5 | 190 | 17 | | | 82.87 € | |
|
