Crank handles stainless steel with revolving grip

go back

Products
- Product overview
  - Flexible standard component system
    - Operating parts
      - Handwheels, crank handles and screw-in grips
        Crank handles stainless steel with revolving grip

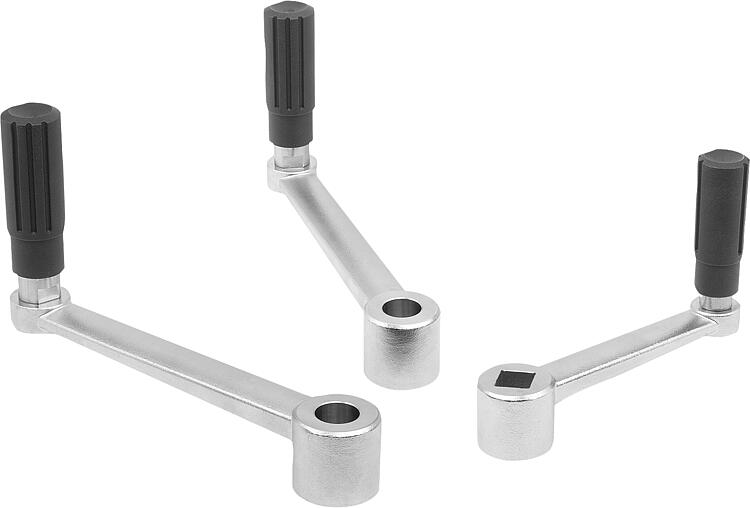

Item description/product images

Show/filter all items

DescriptionMaterial:

Crank stainless steel 1.4308.
Cylindrical grip thermoplastic and stainless steel 1.4404.

Version:Crank bright.
Thermoplastic black grey.
Stainless steel bright.Note:Similar to DIN 469.
Versions with transverse bore are secured using the ISO 4027 (DIN 914) grub screw.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06506 Crank handles stainless steel with revolving grip

141 kB

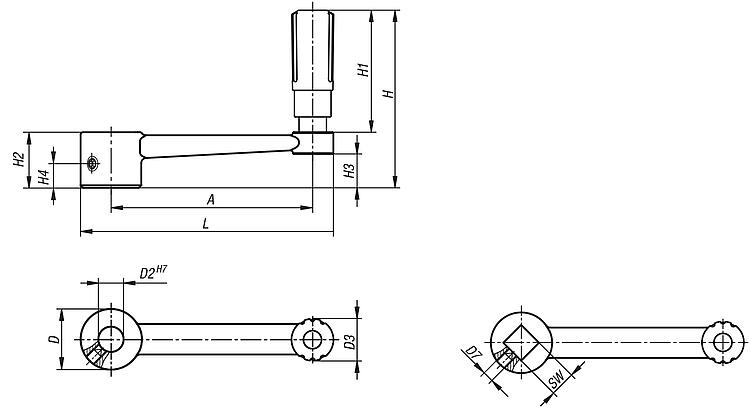

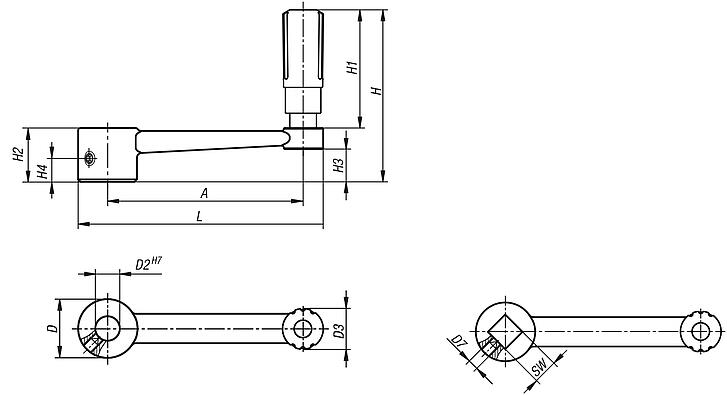

Drawings (total overview)

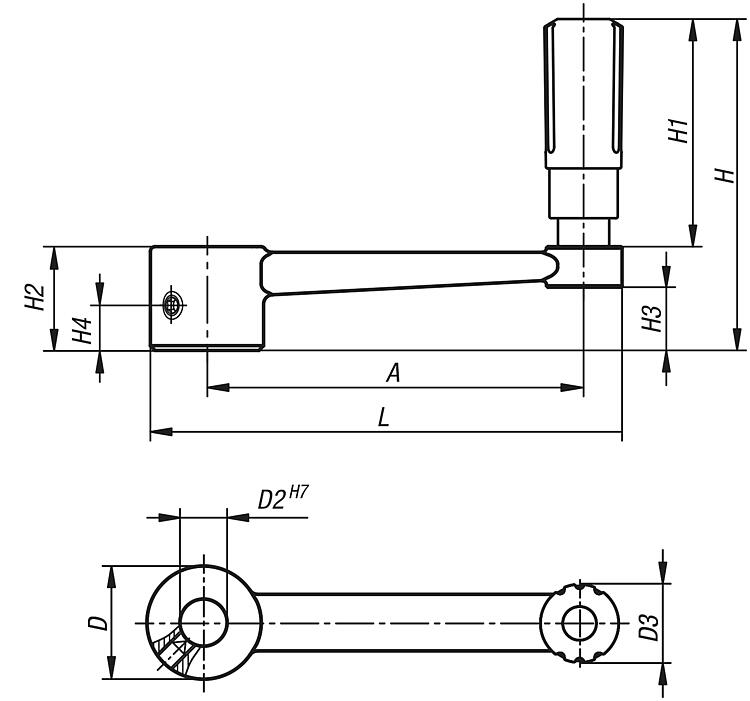

Crank handles stainless steel, revolving grip, reamed hole

More information

Drawings

Crank handles stainless steel, revolving grip, reamed hole

Item selection/filter

Order No.	Version 1	Version 2	A	D	D2	D3	D7	H	H1	H2	H3	H4	L	Price
06506-3110	reamed hole	without transverse hole	80	24	10	16	-	71,1	49,1	22	13,4	-	100	25.65 €
06506-3212	reamed hole	without transverse hole	100	28	12	20	-	87,4	61,4	26	16	-	124	27.26 €
06506-3314	reamed hole	without transverse hole	125	30	14	26	-	110,5	82,5	28	15,8	-	153	34.21 €
06506-3417	reamed hole	without transverse hole	160	34	17	26	-	114,5	82,5	32	19,6	-	190	37.93 €
06506-31106	reamed hole	with transverse bore	80	24	10	16	M6	71,1	49,1	22	13,4	7,5	100	29.14 €
06506-32126	reamed hole	with transverse bore	100	28	12	20	M6	87,4	61,4	26	16	7,5	124	30.75 €
06506-33146	reamed hole	with transverse bore	125	30	14	26	M6	110,5	82,5	28	15,8	7,5	153	37.71 €
06506-34176	reamed hole	with transverse bore	160	34	17	26	M6	114,5	82,5	32	19,6	7,5	190	41.42 €

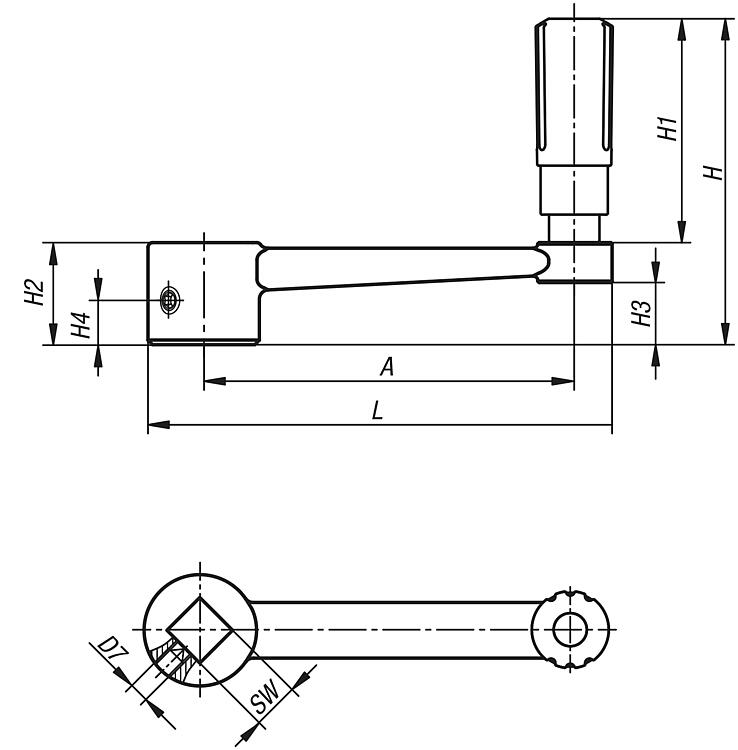

Crank handles stainless steel, revolving grip, square socket

More information

Drawings

Crank handles stainless steel, revolving grip, square socket

Item selection/filter

Order No.	Version 1	Version 2	A	D	D3	D7	H	H1	H2	H3	H4	L	SW	Price
06506-4110	square socket	without transverse hole	80	24	16	-	71,1	49,1	22	13,4	-	100	10	28.72 €
06506-4212	square socket	without transverse hole	100	28	20	-	87,4	61,4	26	16	-	124	12	31.48 €
06506-4314	square socket	without transverse hole	125	30	26	-	110,5	82,5	28	15,8	-	153	14	35.91 €
06506-4417	square socket	without transverse hole	160	34	26	-	114,5	82,5	32	19,6	-	190	17	41.94 €
06506-41106	square socket	with transverse bore	80	24	16	M6	71,1	49,1	22	13,4	7,5	100	10	32.21 €
06506-42126	square socket	with transverse bore	100	28	20	M6	87,4	61,4	26	16	7,5	124	12	34.97 €
06506-43146	square socket	with transverse bore	125	30	26	M6	110,5	82,5	28	15,8	7,5	153	14	39.41 €
06506-44176	square socket	with transverse bore	160	34	26	M6	114,5	82,5	32	19,6	7,5	190	17	45.44 €
