        Crank handles stainless steel with revolving grip

Item description/product images

DescriptionVersion:Bright.Note:Similar to DIN 469.
Versions with transverse bore are secured using the ISO 4027 (DIN 914) grub screw.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06505 Crank handles stainless steel with revolving grip

133 kB

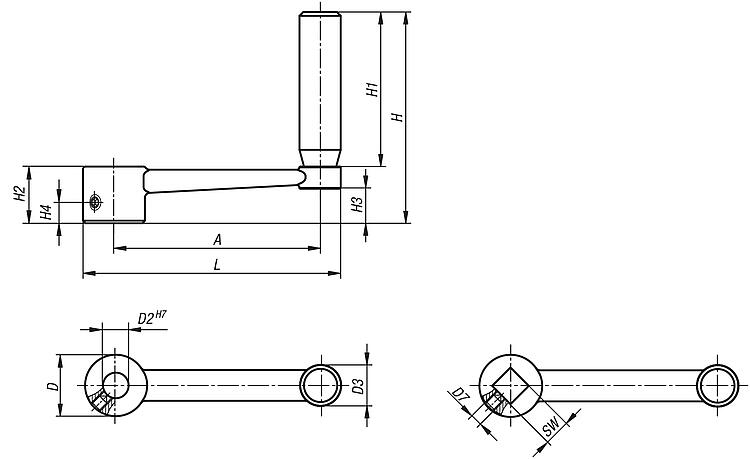

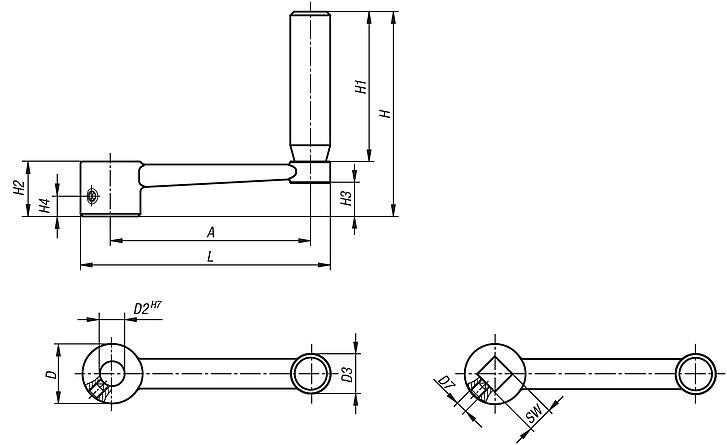

Drawings (total overview)

Crank handles stainless steel, revolving grip, reamed hole

More information

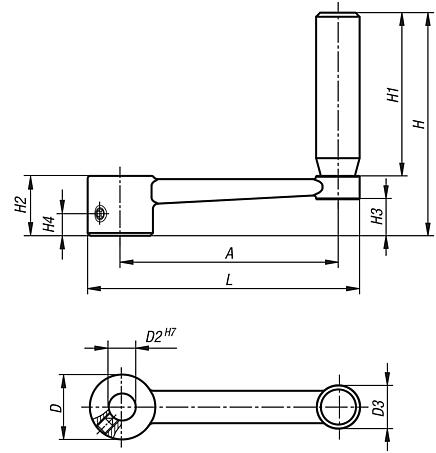

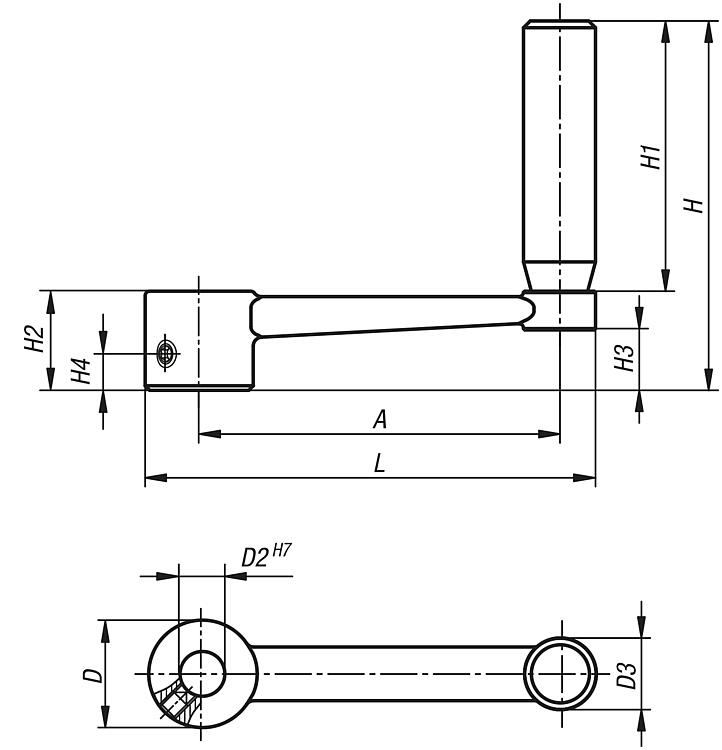

Drawings

Crank handles stainless steel, revolving grip, reamed hole

Item selection/filter

Order No.	Version 1	Version 2	A	D	D2	D3	D7	H	H1	H2	H3	H4	L	Price
06505-3110	reamed hole	without transverse hole	80	24	10	16	-	82	60	22	13,4	-	100	41.04 €
06505-3212	reamed hole	without transverse hole	100	28	12	20	-	98	72	26	16	-	124	50.51 €
06505-3314	reamed hole	without transverse hole	125	30	14	26	-	118	90	28	15,8	-	153	63.76 €
06505-3417	reamed hole	without transverse hole	160	34	17	26	-	122	90	32	19,6	-	190	74.07 €
06505-31106	reamed hole	with transverse bore	80	24	10	16	M6	82	60	22	13,4	7,5	100	40.41 €
06505-32126	reamed hole	with transverse bore	100	28	12	20	M6	98	72	26	16	7,5	124	48.91 €
06505-33146	reamed hole	with transverse bore	125	30	14	26	M6	118	90	28	15,8	7,5	153	60.85 €
06505-34176	reamed hole	with transverse bore	160	34	17	26	M6	122	90	32	19,6	7,5	190	70.09 €

Crank handles stainless steel, revolving grip, square socket

More information

Drawings

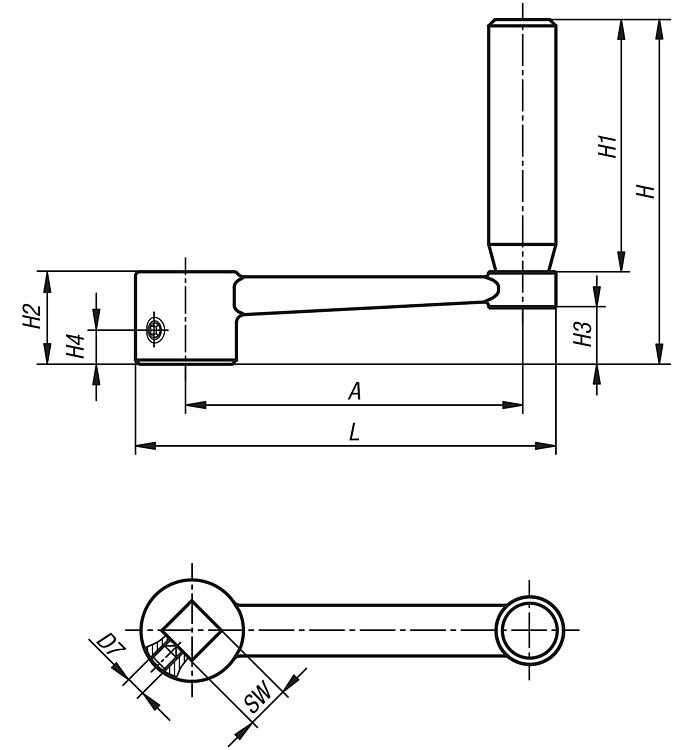

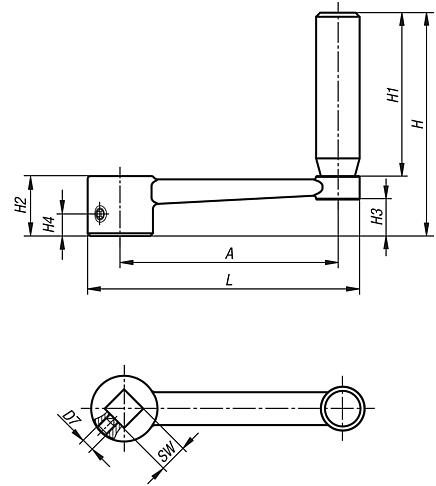

Crank handles stainless steel, revolving grip, square socket

Item selection/filter

Order No.	Version 1	Version 2	A	D	D3	D7	H	H1	H2	H3	H4	L	SW	Price
06505-4110	square socket	without transverse hole	80	24	16	-	82	60	22	13,4	-	100	10	41.58 €
06505-4212	square socket	without transverse hole	100	28	20	-	98	72	26	16	-	124	12	51.54 €
06505-4314	square socket	without transverse hole	125	30	26	-	118	90	28	15,8	-	153	14	65.16 €
06505-4417	square socket	without transverse hole	160	34	26	-	122	90	32	19,6	-	190	17	74.80 €
06505-41106	square socket	with transverse bore	80	24	16	M6	82	60	22	13,4	7,5	100	10	40.89 €
06505-42126	square socket	with transverse bore	100	28	20	M6	98	72	26	16	7,5	124	12	49.85 €
06505-43146	square socket	with transverse bore	125	30	26	M6	118	90	28	15,8	7,5	153	14	62.07 €
06505-44176	square socket	with transverse bore	160	34	26	M6	122	90	32	19,6	7,5	190	17	70.74 €
