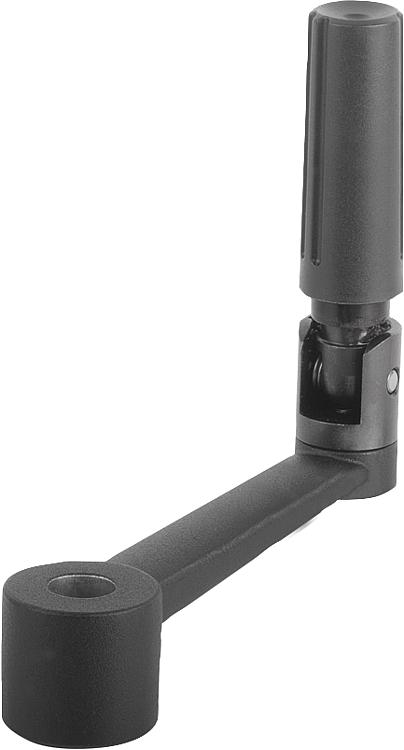

06503_PBCrank handles aluminium with fold-away cylinder grip and reamed... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Crank aluminium.
Cylinder grip thermoplastic and steel.Version:Crank black powder-coated.
Thermoplastic black grey.
Steel parts black oxidised.Note:Similar to DIN 469.
Versions with transverse bore are secured using the ISO 4027 (DIN 914) grub screw. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Version 1 | Version 2 | A | D
| D2 | D3 | D7 | H | H1 | H2 | H3 | H4 | L | CAD | Acc. | Price | Order |
|---|
| 06503-1110 | reamed hole | without transverse hole | 80 | 24 | 10 | 16 | - | 89 | 49 | 22 | 13,4 | - | 100 |  | | 34.60 € | | | 06503-1212 | reamed hole | without transverse hole | 100 | 28 | 12 | 20 | - | 108 | 59,5 | 26 | 16 | - | 124 | | | 38.08 € | | | 06503-1314 | reamed hole | without transverse hole | 125 | 30 | 14 | 25 | - | 140 | 83 | 28 | 15,8 | - | 153 | | | 43.34 € | | | 06503-1417 | reamed hole | without transverse hole | 160 | 34 | 17 | 25 | - | 144 | 83 | 32 | 19,6 | - | 190 | | | 49.00 € | | | 06503-11106 | reamed hole | with transverse bore | 80 | 24 | 10 | 16 | M6 | 89 | 49 | 22 | 13,4 | 7,5 | 100 | | | 38.24 € | | | 06503-12126 | reamed hole | with transverse bore | 100 | 28 | 12 | 20 | M6 | 107,9 | 59,4 | 26 | 16 | 7,5 | 124 | | | 41.70 € | | | 06503-13146 | reamed hole | with transverse bore | 125 | 30 | 14 | 26 | M6 | 140,5 | 83,5 | 28 | 15,8 | 7,5 | 153 | | | 46.93 € | | | 06503-14176 | reamed hole | with transverse bore | 160 | 34 | 17 | 26 | M6 | 144,5 | 83,5 | 32 | 19,6 | 7,5 | 190 | | | 52.57 € | |
