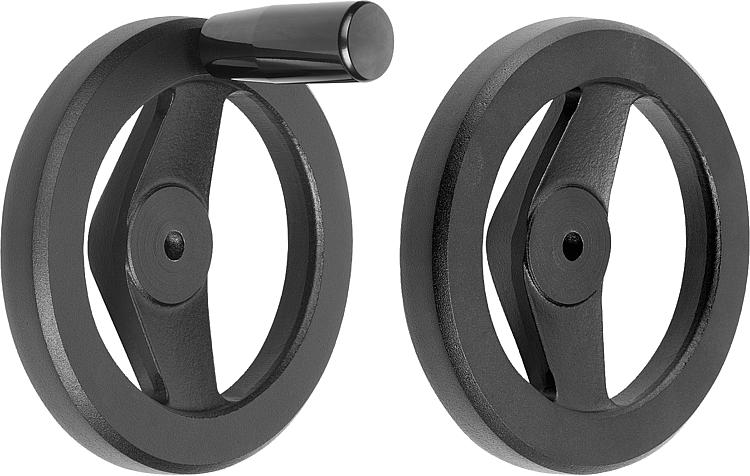

2-spoke handwheels, powder coated aluminium
 06277

2-spoke handwheels, powder coated aluminium

 go back

Item description/product images

 Show/filter all items
DescriptionMaterial:Handwheels aluminium.
Cylinder grip black thermoset PF 31-DIN 7708, centre pin electro zinc-plated steel.Version:Black, powder-coated.
Wheel rim turned.
On request:Hubs with square socket.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 06277 Handwheels 2-spokeflat rim, aluminium 285 kB

Drawings (total overview)

2-spoke handwheels, powder coated aluminium
2-spoke handwheels, powder coated aluminium

2-spoke handwheels, powder coated aluminium, without grip

 More information

Drawings
2-spoke handwheels, powder coated aluminium, without grip
2-spoke handwheels, powder coated aluminium, without grip

Item selection/filter
Order No.Version 1D1

D2D3L1L3B3
T
CADAcc.PriceOrder
06277-01080X10reamed hole8010H7241628-- 11.27 €
06277-01080X12reamed hole8012H7241628-- 11.27 €
06277-01100X10reamed hole10010H7261733-- 13.64 €
06277-01100X12reamed hole10012H7261733-- 13.64 €
06277-01125X12reamed hole12512H7311833,5-- 15.80 €
06277-01125X14reamed hole12514H7311833,5-- 15.80 €
06277-01160X14reamed hole16014H7402039-- 20.29 €
06277-01160X16reamed hole16016H7402039-- 20.29 €
06277-01200X18reamed hole20018H7422445-- 33.61 €
06277-01200X20reamed hole20020H7422445-- 33.61 €
06277-01250X22reamed hole25022H7482851-- 53.18 €
06277-01250X26reamed hole25026H7482851-- 53.18 €
06277-11080X10reamed hole with slot8010H7241628311,4 13.18 €
06277-11080X12reamed hole with slot8012H7241628413,8 13.18 €
06277-11100X10reamed hole with slot10010H7261733311,4 15.54 €
06277-11100X12reamed hole with slot10012H7261733413,8 15.54 €
06277-11125X12reamed hole with slot12512H7311833,5413,8 17.83 €
06277-11125X14reamed hole with slot12514H7311833,5516,3 17.83 €
06277-11160X14reamed hole with slot16014H7402039516,3 22.40 €
06277-11160X16reamed hole with slot16016H7402039518,3 22.40 €
06277-11200X18reamed hole with slot20018H7422445620,8 36.00 €
06277-11200X20reamed hole with slot20020H7422445622,8 36.00 €
06277-11250X22reamed hole with slot25022H7482851624,8 56.22 €
06277-11250X26reamed hole with slot25026H7482851829,3 56.22 €

2-spoke handwheels, powder coated aluminium, with fixed cylindrical grip

 More information

Drawings
2-spoke handwheels, powder coated aluminium, with fixed cylindrical grip
2-spoke handwheels, powder coated aluminium, with fixed cylindrical grip

Item selection/filter
Order No.Version 1D1D2D3L1L3B3
T
Fixed
cylinder
grip		CADAcc.PriceOrder
06277-21080X10reamed hole8010H7241628--ø18 x M6 x 40 16.74 €
06277-21080X12reamed hole8012H7241628--ø18 x M6 x 40 16.74 €
06277-21100X10reamed hole10010H7261733--ø18 x M6 x 40 19.11 €
06277-21100X12reamed hole10012H7261733--ø18 x M6 x 40 19.11 €
06277-21125X12reamed hole12512H7311833,5--ø21 x M8 x 50 22.31 €
06277-21125X14reamed hole12514H7311833,5--ø21 x M8 x 50 22.31 €
06277-21160X14reamed hole16014H7402039--ø26 x M10 x 80 29.79 €
06277-21160X16reamed hole16016H7402039--ø26 x M10 x 80 29.79 €
06277-21200X18reamed hole20018H7422445--ø26 x M10 x 80 43.15 €
06277-21200X20reamed hole20020H7422445--ø26 x M10 x 80 43.15 €
06277-21250X22reamed hole25022H7482851--ø28 x M12 x 90 64.00 €
06277-21250X26reamed hole25026H7482851--ø28 x M12 x 90 64.00 €
06277-31080X10reamed hole with slot8010H7241628311,4ø18 x M6 x 40 18.64 €
06277-31080X12reamed hole with slot8012H7241628413,8ø18 x M6 x 40 18.64 €
06277-31100X10reamed hole with slot10010H7261733311,4ø18 x M6 x 40 21.01 €
06277-31100X12reamed hole with slot10012H7261733413,8ø18 x M6 x 40 21.01 €
06277-31125X12reamed hole with slot12512H7311833,5413,8ø21 x M8 x 50 24.36 €
06277-31125X14reamed hole with slot12514H7311833,5516,3ø21 x M8 x 50 24.36 €
06277-31160X14reamed hole with slot16014H7402039516,3ø26 x M10 x 80 31.92 €
06277-31160X16reamed hole with slot16016H7402039518,3ø26 x M10 x 80 31.92 €
06277-31200X18reamed hole with slot20018H7422445620,8ø26 x M10 x 80 45.45 €
06277-31200X20reamed hole with slot20020H7422445622,8ø26 x M10 x 80 45.45 €
06277-31250X22reamed hole with slot25022H7482851624,8ø28 x M12 x 90 66.95 €
06277-31250X26reamed hole with slot25026H7482851829,3ø28 x M12 x 90 66.95 €

2-spoke handwheels, powder coated aluminium, with revolving cylindrical grip

 More information

Drawings
2-spoke handwheels, powder coated aluminium, with revolving cylindrical grip
2-spoke handwheels, powder coated aluminium, with revolving cylindrical grip

Item selection/filter
Order No.Version 1D1D2D3L1L3B3
T
Revolving
cylinder
grip		CADAcc.PriceOrder
06277-41080X10reamed hole8010H7241628--ø18 x M6 x 40 20.01 €
06277-41080X12reamed hole8012H7241628--ø18 x M6 x 40 20.01 €
06277-41100X10reamed hole10010H7261733--ø18 x M6 x 40 22.40 €
06277-41100X12reamed hole10012H7261733--ø18 x M6 x 40 22.40 €
06277-41125X12reamed hole12512H7311833,5--ø22 x M8 x 56 26.07 €
06277-41125X14reamed hole12514H7311833,5--ø22 x M8 x 56 26.07 €
06277-41160X14reamed hole16014H7402039--ø26 x M10 x 80 32.71 €
06277-41160X16reamed hole16016H7402039--ø26 x M10 x 80 32.71 €
06277-41200X18reamed hole20018H7422445--ø26 x M10 x 80 45.97 €
06277-41200X20reamed hole20020H7422445--ø26 x M10 x 80 45.97 €
06277-41250X22reamed hole25022H7482851--ø31 x M12 x 102 67.92 €
06277-41250X26reamed hole25026H7482851--ø31 x M12 x 102 67.92 €
06277-51080X10reamed hole with slot8010H7241628311,4ø18 x M6 x 40 22.01 €
06277-51080X12reamed hole with slot8012H7241628413,8ø18 x M6 x 40 22.01 €
06277-51100X10reamed hole with slot10010H7261733311,4ø18 x M6 x 40 24.43 €
06277-51100X12reamed hole with slot10012H7261733413,8ø18 x M6 x 40 24.43 €
06277-51125X12reamed hole with slot12512H7311833,5413,8ø22 x M8 x 56 28.18 €
06277-51125X14reamed hole with slot12514H7311833,5516,3ø22 x M8 x 56 28.18 €
06277-51160X14reamed hole with slot16014H7402039516,3ø26 x M10 x 80 34.82 €
06277-51160X16reamed hole with slot16016H7402039518,3ø26 x M10 x 80 34.82 €
06277-51200X18reamed hole with slot20018H7422445620,8ø26 x M10 x 80 48.28 €
06277-51200X20reamed hole with slot20020H7422445622,8ø26 x M10 x 80 48.28 €
06277-51250X22reamed hole with slot25022H7482851624,8ø31 x M12 x 102 70.87 €
06277-51250X26reamed hole with slot25026H7482851829,3ø31 x M12 x 102 70.87 €
