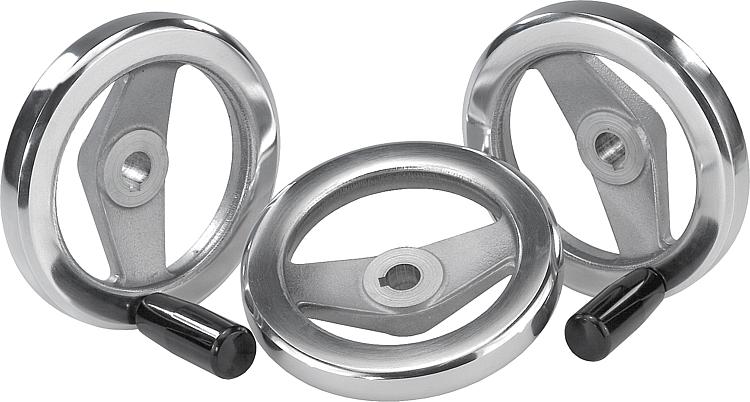

2-spoke handwheels, polished aluminium
 06277

2-spoke handwheels, polished aluminium

 go back

Item description/product images

 Show/filter all items
DescriptionMaterial:Handwheels aluminium.
Cylinder grip black thermoset PF 31-DIN 7708, centre pin electro zinc-plated steel.Version:Wheel rim turned and polished.
On request:Hubs with square socket or powder-coated handwheels.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 06277 Handwheels 2-spokealuminium, flat wheel rim 259 kB

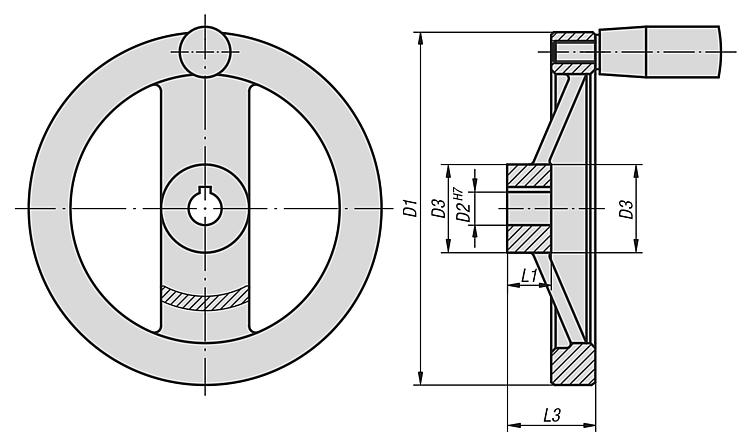

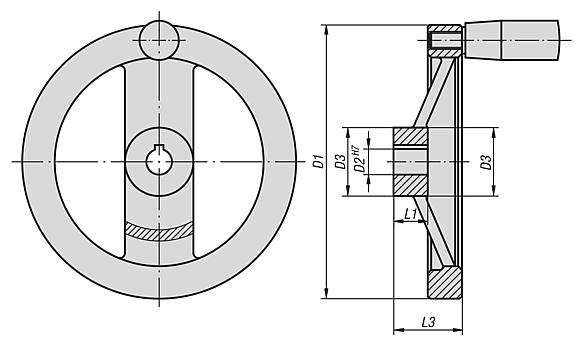

Drawings (total overview)

2-spoke handwheels, polished aluminium
2-spoke handwheels, polished aluminium

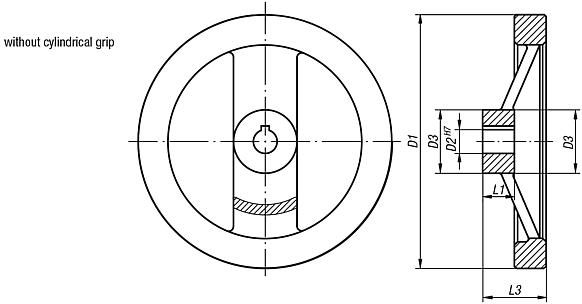

2-spoke handwheels, polished aluminium, without grip

 More information

Drawings
2-spoke handwheels, polished aluminium, without grip
2-spoke handwheels, polished aluminium, without grip

Item selection/filter
Order No.Version 1D1

D2D3L1L3B3
T
CADAcc.PriceOrder
06277-0080X10reamed hole8010H7241628-- 10.74 €
06277-0080X12reamed hole8012H7241628-- 10.74 €
06277-0100X10reamed hole10010H7261733-- 12.96 €
06277-0100X12reamed hole10012H7261733-- 12.96 €
06277-0125X12reamed hole12512H7311833,5-- 15.03 €
06277-0125X14reamed hole12514H7311833,5-- 15.03 €
06277-0160X14reamed hole16014H7402039-- 19.34 €
06277-0160X16reamed hole16016H7402039-- 19.34 €
06277-0200X18reamed hole20018H7422445-- 32.02 €
06277-0200X20reamed hole20020H7422445-- 32.02 €
06277-0250X22reamed hole25022H7482851-- 50.68 €
06277-0250X26reamed hole25026H7482851-- 50.68 €
06277-1080X10reamed hole with slot8010H7241628311,4 12.55 €
06277-1080X12reamed hole with slot8012H7241628413,8 12.55 €
06277-1100X10reamed hole with slot10010H7261733311,4 14.80 €
06277-1100X12reamed hole with slot10012H7261733413,8 14.80 €
06277-1125X12reamed hole with slot12512H7311833,5413,8 17.00 €
06277-1125X14reamed hole with slot12514H7311833,5516,3 17.00 €
06277-1160X14reamed hole with slot16014H7402039516,3 21.40 €
06277-1160X16reamed hole with slot16016H7402039518,3 21.40 €
06277-1200X18reamed hole with slot20018H7422445620,8 34.25 €
06277-1200X20reamed hole with slot20020H7422445622,8 34.25 €
06277-1250X22reamed hole with slot25022H7482851624,8 53.58 €
06277-1250X26reamed hole with slot25026H7482851829,3 53.58 €

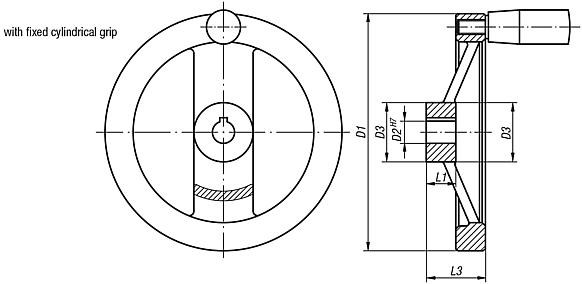

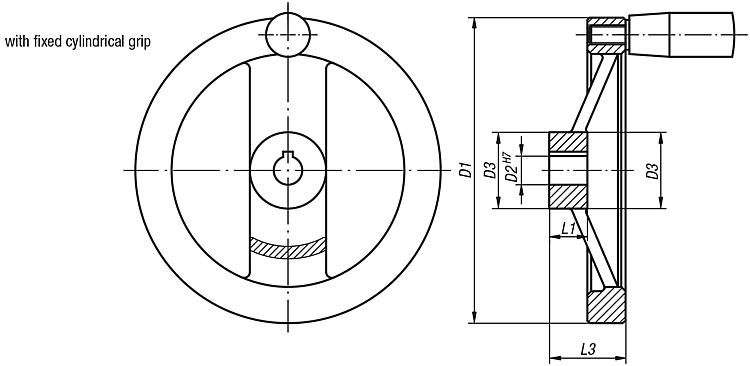

2-spoke handwheels, polished aluminium, with fixed cylindrical grip

 More information

Drawings
2-spoke handwheels, polished aluminium, with fixed cylindrical grip
2-spoke handwheels, polished aluminium, with fixed cylindrical grip

Item selection/filter
Order No.Version 1D1D2D3L1L3B3
T
Fixed
cylinder
grip		CADAcc.PriceOrder
06277-2080X10reamed hole8010H7241628--ø18 x M6 x 40 15.95 €
06277-2080X12reamed hole8012H7241628--ø18 x M6 x 40 15.95 €
06277-2100X10reamed hole10010H7261733--ø18 x M6 x 40 18.15 €
06277-2100X12reamed hole10012H7261733--ø18 x M6 x 40 18.15 €
06277-2125X12reamed hole12512H7311833,5--ø21 x M8 x 50 21.22 €
06277-2125X14reamed hole12514H7311833,5--ø21 x M8 x 50 21.22 €
06277-2160X14reamed hole16014H7402039--ø26 x M10 x 80 28.42 €
06277-2160X16reamed hole16016H7402039--ø26 x M10 x 80 28.42 €
06277-2200X18reamed hole20018H7422445--ø26 x M10 x 80 41.07 €
06277-2200X20reamed hole20020H7422445--ø26 x M10 x 80 41.07 €
06277-2250X22reamed hole25022H7482851--ø28 x M12 x 90 60.94 €
06277-2250X26reamed hole25026H7482851--ø28 x M12 x 90 60.94 €
06277-3080X10reamed hole with slot8010H7241628311,4ø18 x M6 x 40 17.80 €
06277-3080X12reamed hole with slot8012H7241628413,8ø18 x M6 x 40 17.80 €
06277-3100X10reamed hole with slot10010H7261733311,4ø18 x M6 x 40 20.02 €
06277-3100X12reamed hole with slot10012H7261733413,8ø18 x M6 x 40 20.02 €
06277-3125X12reamed hole with slot12512H7311833,5413,8ø21 x M8 x 50 23.13 €
06277-3125X14reamed hole with slot12514H7311833,5516,3ø21 x M8 x 50 23.13 €
06277-3160X14reamed hole with slot16014H7402039516,3ø26 x M10 x 80 30.48 €
06277-3160X16reamed hole with slot16016H7402039518,3ø26 x M10 x 80 30.48 €
06277-3200X18reamed hole with slot20018H7422445620,8ø26 x M10 x 80 43.30 €
06277-3200X20reamed hole with slot20020H7422445622,8ø26 x M10 x 80 43.30 €
06277-3250X22reamed hole with slot25022H7482851624,8ø28 x M12 x 90 63.69 €
06277-3250X26reamed hole with slot25026H7482851829,3ø28 x M12 x 90 63.69 €

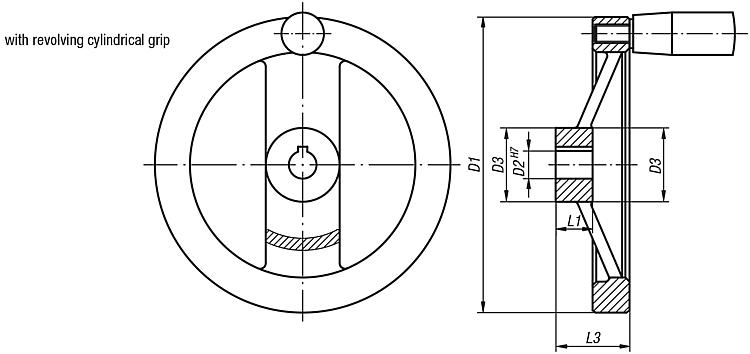

2-spoke handwheels, polished aluminium, with revolving cylindrical grip

 More information

Drawings
2-spoke handwheels, polished aluminium, with revolving cylindrical grip
2-spoke handwheels, polished aluminium, with revolving cylindrical grip

Item selection/filter
Order No.Version 1D1D2D3L1L3B3
T
Revolving
cylinder
grip		CADAcc.PriceOrder
06277-4080X10reamed hole8010H7241628--ø18 x M6 x 40 19.00 €
06277-4080X12reamed hole8012H7241628--ø18 x M6 x 40 19.00 €
06277-4100X10reamed hole10010H7261733--ø18 x M6 x 40 21.40 €
06277-4100X12reamed hole10012H7261733--ø18 x M6 x 40 21.40 €
06277-4125X12reamed hole12512H7311833,5--ø22 x M8 x 56 24.82 €
06277-4125X14reamed hole12514H7311833,5--ø22 x M8 x 56 24.82 €
06277-4160X14reamed hole16014H7402039--ø26 x M10 x 80 31.18 €
06277-4160X16reamed hole16016H7402039--ø26 x M10 x 80 31.18 €
06277-4200X18reamed hole20018H7422445--ø26 x M10 x 80 43.82 €
06277-4200X20reamed hole20020H7422445--ø26 x M10 x 80 43.82 €
06277-4250X22reamed hole25022H7482851--ø31 x M12 x 102 64.73 €
06277-4250X26reamed hole25026H7482851--ø31 x M12 x 102 64.73 €
06277-5080X10reamed hole with slot8010H7241628311,4ø18 x M6 x 40 20.91 €
06277-5080X12reamed hole with slot8012H7241628413,8ø18 x M6 x 40 20.91 €
06277-5100X10reamed hole with slot10010H7261733311,4ø18 x M6 x 40 23.28 €
06277-5100X12reamed hole with slot10012H7261733413,8ø18 x M6 x 40 23.28 €
06277-5125X12reamed hole with slot12512H7311833,5413,8ø22 x M8 x 56 26.86 €
06277-5125X14reamed hole with slot12514H7311833,5516,3ø22 x M8 x 56 26.86 €
06277-5160X14reamed hole with slot16014H7402039516,3ø26 x M10 x 80 33.03 €
06277-5160X16reamed hole with slot16016H7402039518,3ø26 x M10 x 80 33.03 €
06277-5200X18reamed hole with slot20018H7422445620,8ø26 x M10 x 80 46.06 €
06277-5200X20reamed hole with slot20020H7422445622,8ø26 x M10 x 80 46.06 €
06277-5250X22reamed hole with slot25022H7482851624,8ø31 x M12 x 102 67.49 €
06277-5250X26reamed hole with slot25026H7482851829,3ø31 x M12 x 102 67.49 €
