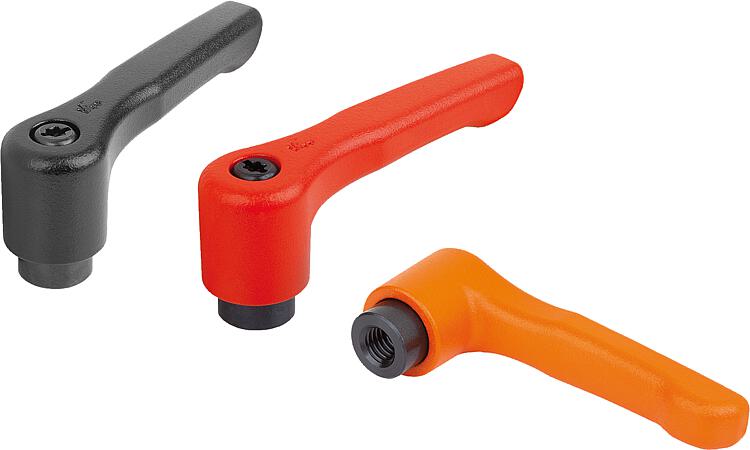

        Clamping levers, die-cast zinc, flat with internal thread, threaded insert black oxidised steel

Item description/product images

DescriptionMaterial:Handle die-cast zinc DIN EN 12844.
Steel parts grade 5.8.Version:Handle powder-coated.
Steel parts black oxidised.On request:Other threads, colours and special versions.
Dimension “H1” available in other lengths at extra charge.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06448 Clamping levers, die-cast zinc, flat with internal thread, threaded insert black oxidised steel

192 kB

Drawings

Overview of items (compressed)

Item selection/filter

Order No.	Main colour	Surface finish body	Size	X	T	D	D1	D2	H	H1	H2	H3	H4	A	A1	B	No. of teeth	Price
06448-2061	jet black RAL 9005	satin finish	2	M6	12	13,5	18,5	19,1	28,5	6,5	17,8	29,2	32,2	65	74,5	10,1	20	6.91 €
06448-2081	jet black RAL 9005	satin finish	2	M8	12	13,5	18,5	19,1	28,5	6,5	17,8	29,2	32,2	65	74,5	10,1	20	6.91 €
06448-3081	jet black RAL 9005	satin finish	3	M8	14	16	21,2	22	37	10	23,8	38	42	80	91	11,7	22	7.56 €
06448-3101	jet black RAL 9005	satin finish	3	M10	14	16	21,2	22	37	10	23,8	38	42	80	91	11,7	22	7.56 €
06448-206181	jet black RAL 9005	textured matt	2	M6	12	13,5	18,5	19,1	28,5	6,5	17,8	29,2	32,2	65	74,5	10,1	20	6.91 €
06448-208181	jet black RAL 9005	textured matt	2	M8	12	13,5	18,5	19,1	28,5	6,5	17,8	29,2	32,2	65	74,5	10,1	20	6.91 €
06448-308181	jet black RAL 9005	textured matt	3	M8	14	16	21,2	22	37	10	23,8	38	42	80	91	11,7	22	7.56 €
06448-310181	jet black RAL 9005	textured matt	3	M10	14	16	21,2	22	37	10	23,8	38	42	80	91	11,7	22	7.56 €
06448-206182	orange RAL 2004	textured matt	2	M6	12	13,5	18,5	19,1	28,5	6,5	17,8	29,2	32,2	65	74,5	10,1	20	6.91 €
06448-208182	orange RAL 2004	textured matt	2	M8	12	13,5	18,5	19,1	28,5	6,5	17,8	29,2	32,2	65	74,5	10,1	20	6.91 €
06448-308182	orange RAL 2004	textured matt	3	M8	14	16	21,2	22	37	10	23,8	38	42	80	91	11,7	22	7.56 €
06448-310182	orange RAL 2004	textured matt	3	M10	14	16	21,2	22	37	10	23,8	38	42	80	91	11,7	22	7.56 €
06448-206184	traffic red RAL 3020	textured matt	2	M6	12	13,5	18,5	19,1	28,5	6,5	17,8	29,2	32,2	65	74,5	10,1	20	6.91 €
06448-208184	traffic red RAL 3020	textured matt	2	M8	12	13,5	18,5	19,1	28,5	6,5	17,8	29,2	32,2	65	74,5	10,1	20	6.91 €
06448-308184	traffic red RAL 3020	textured matt	3	M8	14	16	21,2	22	37	10	23,8	38	42	80	91	11,7	22	7.56 €
06448-310184	traffic red RAL 3020	textured matt	3	M10	14	16	21,2	22	37	10	23,8	38	42	80	91	11,7	22	7.56 €
