06400_0Tension levers, flat, external thread, 0° |
go back |
|
Item description/product images |
|
|

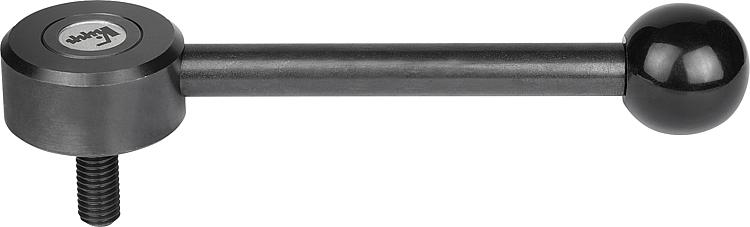

DescriptionMaterial:Steel parts grade 5.8.
Ball knob black plastic.Version:Black oxidised.On request:Other threads, screw lengths and special versions.
Dimensions “H1” and “A” available in other lengths at extra charge.Drawing reference:1) flat point DIN EN ISO 4753 DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form | Size | X | L | A | D | D1 | D2 | D3 | H | H1 | H2 | H3 | No. of
teeth
| CAD | Acc. | Price | Order |
|---|
| 06400-1081X15 | 0° | 1 | M8 | 15 | 102 | 13,5 | 33 | 25 | 10 | 19 | 2 | 12 | 23 | 20 |  | | 16.77 € | | | 06400-1081X20 | 0° | 1 | M8 | 20 | 102 | 13,5 | 33 | 25 | 10 | 19 | 2 | 12 | 23 | 20 | | | 16.77 € | | | 06400-1081X25 | 0° | 1 | M8 | 25 | 102 | 13,5 | 33 | 25 | 10 | 19 | 2 | 12 | 23 | 20 | | | 16.77 € | | | 06400-1081X30 | 0° | 1 | M8 | 30 | 102 | 13,5 | 33 | 25 | 10 | 19 | 2 | 12 | 23 | 20 | | | 16.77 € | | | 06400-1081X40 | 0° | 1 | M8 | 40 | 102 | 13,5 | 33 | 25 | 10 | 19 | 2 | 12 | 23 | 20 | | | 17.58 € | | | 06400-1081X50 | 0° | 1 | M8 | 50 | 102 | 13,5 | 33 | 25 | 10 | 19 | 2 | 12 | 23 | 20 | | | 17.58 € | | | 06400-1081X60 | 0° | 1 | M8 | 60 | 102 | 13,5 | 33 | 25 | 10 | 19 | 2 | 12 | 23 | 20 | | | 17.58 € | | | 06400-1101X15 | 0° | 1 | M10 | 15 | 102 | 13,5 | 33 | 25 | 10 | 19 | 2 | 12 | 23 | 20 | | | 16.77 € | | | 06400-1101X20 | 0° | 1 | M10 | 20 | 102 | 13,5 | 33 | 25 | 10 | 19 | 2 | 12 | 23 | 20 | | | 16.77 € | | | 06400-1101X25 | 0° | 1 | M10 | 25 | 102 | 13,5 | 33 | 25 | 10 | 19 | 2 | 12 | 23 | 20 | | | 16.77 € | | | 06400-1101X30 | 0° | 1 | M10 | 30 | 102 | 13,5 | 33 | 25 | 10 | 19 | 2 | 12 | 23 | 20 | | | 16.77 € | | | 06400-1101X40 | 0° | 1 | M10 | 40 | 102 | 13,5 | 33 | 25 | 10 | 19 | 2 | 12 | 23 | 20 | | | 17.58 € | | | 06400-1101X50 | 0° | 1 | M10 | 50 | 102 | 13,5 | 33 | 25 | 10 | 19 | 2 | 12 | 23 | 20 | | | 17.58 € | | | 06400-1101X60 | 0° | 1 | M10 | 60 | 102 | 13,5 | 33 | 25 | 10 | 19 | 2 | 12 | 23 | 20 | | | 17.58 € | | | 06400-2101X20 | 0° | 2 | M10 | 20 | 131 | 19 | 41 | 30 | 12 | 22 | 2 | 13,5 | 26 | 24 | | | 20.75 € | | | 06400-2101X25 | 0° | 2 | M10 | 25 | 131 | 19 | 41 | 30 | 12 | 22 | 2 | 13,5 | 26 | 24 | | | 20.75 € | | | 06400-2101X30 | 0° | 2 | M10 | 30 | 131 | 19 | 41 | 30 | 12 | 22 | 2 | 13,5 | 26 | 24 | | | 20.75 € | | | 06400-2101X40 | 0° | 2 | M10 | 40 | 131 | 19 | 41 | 30 | 12 | 22 | 2 | 13,5 | 26 | 24 | | | 21.69 € | | | 06400-2101X50 | 0° | 2 | M10 | 50 | 131 | 19 | 41 | 30 | 12 | 22 | 2 | 13,5 | 26 | 24 | | | 21.69 € | | | 06400-2101X60 | 0° | 2 | M10 | 60 | 131 | 19 | 41 | 30 | 12 | 22 | 2 | 13,5 | 26 | 24 | | | 21.69 € | | | 06400-2121X20 | 0° | 2 | M12 | 20 | 131 | 19 | 41 | 30 | 12 | 22 | 2 | 13,5 | 26 | 24 | | | 20.75 € | | | 06400-2121X25 | 0° | 2 | M12 | 25 | 131 | 19 | 41 | 30 | 12 | 22 | 2 | 13,5 | 26 | 24 | | | 20.75 € | | | 06400-2121X30 | 0° | 2 | M12 | 30 | 131 | 19 | 41 | 30 | 12 | 22 | 2 | 13,5 | 26 | 24 | | | 20.75 € | | | 06400-2121X40 | 0° | 2 | M12 | 40 | 131 | 19 | 41 | 30 | 12 | 22 | 2 | 13,5 | 26 | 24 | | | 21.69 € | | | 06400-2121X50 | 0° | 2 | M12 | 50 | 131 | 19 | 41 | 30 | 12 | 22 | 2 | 13,5 | 26 | 24 | | | 21.69 € | | | 06400-2121X60 | 0° | 2 | M12 | 60 | 131 | 19 | 41 | 30 | 12 | 22 | 2 | 13,5 | 26 | 24 | | | 21.69 € | | | 06400-3121X20 | 0° | 3 | M12 | 20 | 148 | 23 | 45 | 37 | 14 | 28 | 2 | 17 | 33 | 26 | | | 25.05 € | | | 06400-3121X25 | 0° | 3 | M12 | 25 | 148 | 23 | 45 | 37 | 14 | 28 | 2 | 17 | 33 | 26 | | | 25.05 € | | | 06400-3121X30 | 0° | 3 | M12 | 30 | 148 | 23 | 45 | 37 | 14 | 28 | 2 | 17 | 33 | 26 | | | 25.05 € | | | 06400-3121X40 | 0° | 3 | M12 | 40 | 148 | 23 | 45 | 37 | 14 | 28 | 2 | 17 | 33 | 26 | | | 25.94 € | | | 06400-3121X50 | 0° | 3 | M12 | 50 | 148 | 23 | 45 | 37 | 14 | 28 | 2 | 17 | 33 | 26 | | | 25.94 € | | | 06400-3121X60 | 0° | 3 | M12 | 60 | 148 | 23 | 45 | 37 | 14 | 28 | 2 | 17 | 33 | 26 | | | 25.94 € | | | 06400-3161X20 | 0° | 3 | M16 | 20 | 148 | 23 | 45 | 37 | 14 | 28 | 2 | 17 | 33 | 26 | | | 25.05 € | | | 06400-3161X25 | 0° | 3 | M16 | 25 | 148 | 23 | 45 | 37 | 14 | 28 | 2 | 17 | 33 | 26 | | | 25.05 € | | | 06400-3161X30 | 0° | 3 | M16 | 30 | 148 | 23 | 45 | 37 | 14 | 28 | 2 | 17 | 33 | 26 | | | 25.05 € | | | 06400-3161X40 | 0° | 3 | M16 | 40 | 148 | 23 | 45 | 37 | 14 | 28 | 2 | 17 | 33 | 26 | | | 25.94 € | | | 06400-3161X50 | 0° | 3 | M16 | 50 | 148 | 23 | 45 | 37 | 14 | 28 | 2 | 17 | 33 | 26 | | | 25.94 € | | | 06400-3161X60 | 0° | 3 | M16 | 60 | 148 | 23 | 45 | 37 | 14 | 28 | 2 | 17 | 33 | 26 | | | 25.94 € | |
