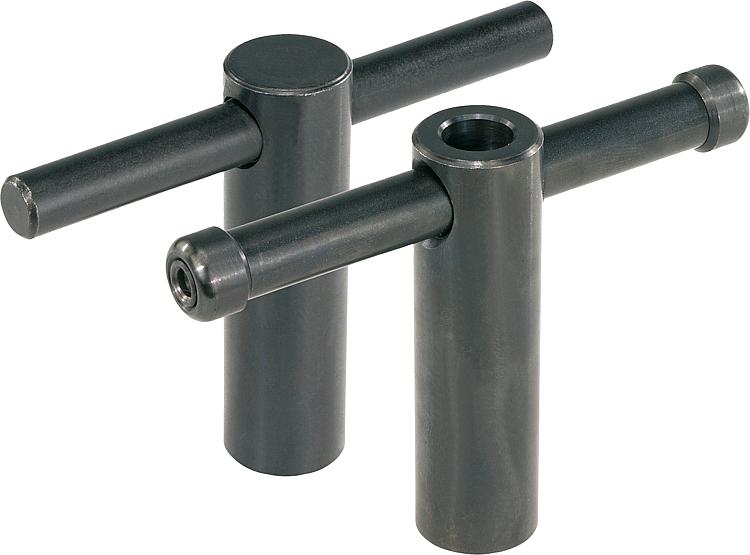

06140Tommy bars with fixed or sliding T-bar, DIN 6305 or DIN 6307 |
go back | |
|
Item description/product images |
Back to group overview |
  |
DescriptionMaterial:Steel.Version:Black oxidised.Note:By the version with sliding T-bar the bar is held in any desired position by a spring in the body. End stops prevent the bar falling out. By the version with fixed T-bar the bar is pressed in. DownloadHere is all the information as a PDF datasheet: Are you looking for CAD data? These can be found directly in the product table.
|

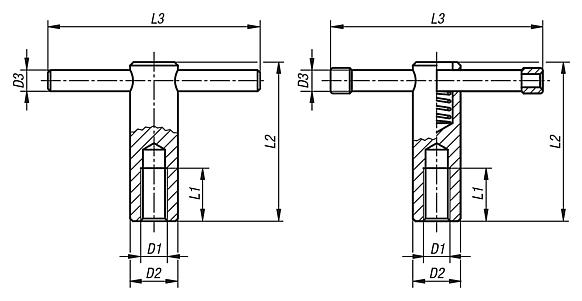

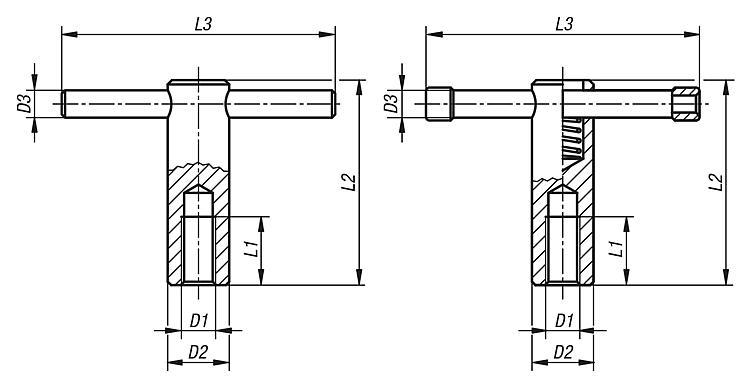

Drawings (total overview) |
 |
Item selection/filter |
| Order No. | Version 1 | D1 | D2 | D3 | L1 | L2 | L3 | CAD | Acc. | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 06140-110 | fixed t-bar | M10 | 18 | 8 | 20 | 60 | 80 |  | 5.55 € | ||
| 06140-112 | fixed t-bar | M12 | 20 | 10 | 25 | 70 | 100 | | 6.38 € | ||
| 06140-116 | fixed t-bar | M16 | 24 | 12 | 35 | 85 | 120 | | 9.30 € | ||
| 06140-120 | fixed t-bar | M20 | 30 | 16 | 40 | 95 | 140 | | 14.15 € | ||
| 06140-210 | sliding t-bar | M10 | 18 | 8 | 20 | 60 | 80 | | 8.77 € | ||
| 06140-212 | sliding t-bar | M12 | 20 | 10 | 25 | 70 | 100 | | 9.83 € | ||
| 06140-216 | sliding t-bar | M16 | 24 | 13 | 35 | 85 | 120 | | 12.81 € | ||
| 06140-220 | sliding t-bar | M20 | 30 | 16 | 40 | 95 | 140 | | 18.62 € |
