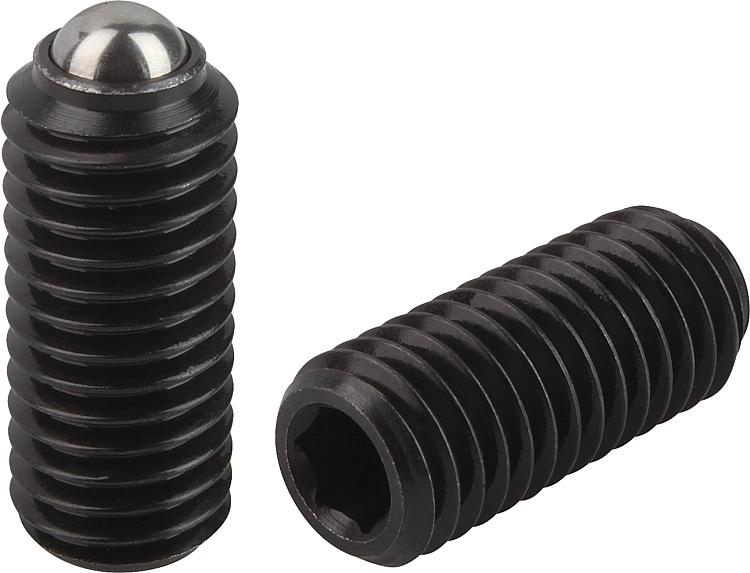

03030_SFSpring plungers with hexagon socket and ball, steel, standard... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Sleeve steel grade 5.8.
Ball steel.
Spring grade D steel wire.Version:Black oxidised. Ball hardened. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| D | D1 | H | L | S | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| 03030-03 | M3 | 1,5 | 0,4 | 9 | 1,5 | 1,5 | 3 |  | | 2.09 € | | | 03030-04 | M4 | 2,5 | 0,8 | 10 | 2 | 4 | 10 | | | 1.56 € | | | 03030-05 | M5 | 3 | 0,9 | 14 | 2,5 | 6 | 11 | | | 1.56 € | | | 03030-06 | M6 | 3,5 | 1 | 15 | 3 | 9 | 13 | | | 1.56 € | | | 03030-08 | M8 | 5 | 1,5 | 18 | 4 | 15 | 30 | | | 2.02 € | | | 03030-10 | M10 | 6 | 2 | 23 | 5 | 20 | 40 | | | 2.23 € | | | 03030-12 | M12 | 8 | 2,5 | 26 | 6 | 30 | 55 | | | 2.96 € | | | 03030-16 | M16 | 10 | 3,5 | 33 | 8 | 65 | 125 | | | 3.96 € | | | 03030-20 | M20 | 12 | 4,5 | 43 | 10 | 80 | 160 | | | 5.32 € | | | 03030-24 | M24 | 15 | 5,5 | 48 | 12 | 90 | 180 | | | 9.23 € | |
