DescriptionMaterial:Body polyethylene.Version:Body black.Note:*The article exhibits longitudinal distortion due to the material behaviour and geometry - well suited for gliders and foot plugs.
The lamellar are closed or interrupted. For technical production reasons, cast residues may exceed the shaft length.
The number of laminates per plug varies between 2 and 4.
The information after the name of the matching tubes in the table under ID refers to the wall thickness of the tubes.
Application:These plugs are for corner protection and plugging the tube ends.Assembly:They can be pushed in by hand or tapped in with a plastic hammer. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

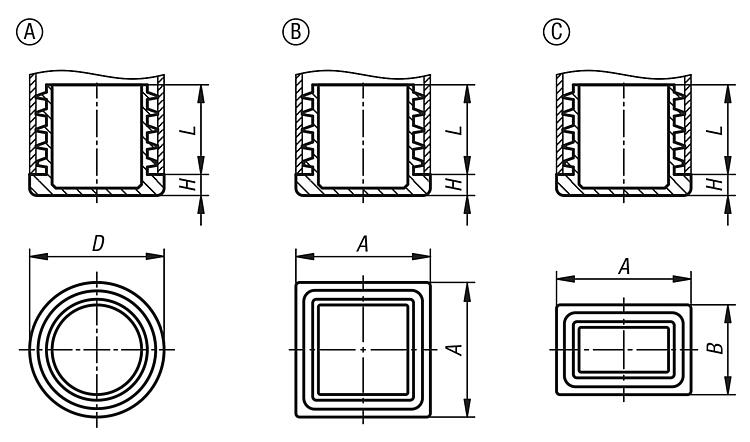

Drawings (total overview) |
| Order No. | Form | Form definition | A | B | D | H
| L | Suitable for
| CAD | Acc. | Price | Order |
|---|
| 29056-000100815 | A | 35-65 | - | - | 10 | 3,5 | 10 | Selector switch |  | | 0.00 € | | | 29056-000120820 | A | 35-65 | - | - | 12 | 3,5 | 10 | screw-on | | | 0.00 € | | | 29056-000130820 | A | 35-65 | - | - | 13 | 4 | 10,5 | screw-on | | | 0.00 € | | | 29056-000140820 | A | 35-65 | - | - | 14 | 5 | 11,5 | Screw-on jaw | | | 0.00 € | | | 29056-000150820 | A | 35-65 | - | - | 15 | 3 | 11,5 | Screw-on jaw | | | 0.00 € | | | 29056-000160820 | A | 35-65 | - | - | 16 | 5 | 11,5 | screw-on with flange | | | 0.00 € | | | 29056-018150 | A | 35-65 | - | - | 18 | 5 | 11,5 | Ø18x0,8-2 | | | 0.00 € | | | 29056-000182535 | A | 35-65 | - | - | 18 | 5 | 11,5 | see drawing | | | 0.00 € | | | 29056-000190825 | A | 35-65 | - | - | 19 | 5 | 11,5 | seal and shim washer | | | 0.00 € | | | 29056-020200 | A | 35-65 | - | - | 20 | 5 | 11,5 | Ø20x0,8-2,5 | | | 0.00 € | | | 29056-000210825 | A | 35-65 | - | - | 21 | 5 | 11,5 | Seal Washer | | | 0.00 € | | | 29056-000220830 | A | 35-65 | - | - | 22 | 5 | 11,5 | screw-on | | | 0.00 € | | | 29056-000230830 | A | 35-65 | - | - | 23 | 5 | 11,5 | security | | | 0.00 € | | | 29056-000240825 | A | 35-65 | - | - | 24 | 5 | 11,5 | sealing ring | | | 0.00 € | | | 29056-025200 | A | 35-65 | - | - | 25 | 5 | 11,5 | Ø25x1-3 | | | 0.00 € | | | 29056-000253050 | A | 35-65 | - | - | 25 | 5 | 11,5 | Ø25x3-5 | | | 0.00 € | | | 29056-000260830 | A | 35-65 | - | - | 26 | 5 | 11,5 | see diagram | | | 0.00 € | | | 29056-000270830 | A | 35-65 | - | - | 27 | 5 | 11,5 | Seal Ring | | | 0.00 € | | | 29056-000280825 | A | 35-65 | - | - | 28 | 5 | 11,5 | Seating Ledges | | | 0.00 € | | | 29056-030200 | A | 35-65 | - | - | 30 | 5 | 11,5 | Ø30x0,8-2,5 | | | 0.00 € | | | 29056-000302545 | A | 35-65 | - | - | 30 | 5 | 11,5 | Security Hinge Switch | | | 0.00 € | | | 29056-000320830 | A | 35-65 | - | - | 32 | 5 | 11,5 | Secure Quarter-Turn Lock | | | 0.00 € | | | 29056-000322545 | A | 35-65 | - | - | 32 | 5 | 11,5 | sealing ring | | | 0.00 € | | | 29056-000340830 | A | 35-65 | - | - | 34 | 5 | 11,5 | Sealing plugs | | | 0.00 € | | | 29056-000343540 | A | 35-65 | - | - | 34 | 5 | 11,5 | Sealing edge | | | 0.00 € | | | 29056-000351030 | A | 35-65 | - | - | 35 | 5 | 11,5 | Ø35x1-3 | | | 0.00 € | | | 29056-000353050 | A | 35-65 | - | - | 35 | 5 | 11,5 | Ø35x3-5 | | | 0.00 € | | | 29056-000361030 | A | 35-65 | - | - | 36 | 5 | 11,5 | Ø36x1-3 | | | 0.00 € | | | 29056-000371030 | A | 35-65 | - | - | 37 | 5 | 11,5 | Ø37x1-3 | | | 0.00 € | | | 29056-000381030 | A | 35-65 | - | - | 38 | 5 | 11,5 | Ø38x1-3 | | | 0.00 € | | | 29056-000383050 | A | 35-65 | - | - | 38 | 5 | 11,5 | Ø38x3-5 | | | 0.00 € | | | 29056-040300 | A | 35-65 | - | - | 40 | 5 | 11,5 | Ø40x1-3 | | | 0.00 € | | | 29056-040400 | A | 35-65 | - | - | 40 | 5 | 11,5 | Ø40x3-5 | | | 0.00 € | | | 29056-000420825 | A | 35-65 | - | - | 42 | 5 | 11,5 | see relevant products for dimensions | | | 0.00 € | | | 29056-000422550 | A | 35-65 | - | - | 42 | 5 | 11,5 | self-retraction | | | 0.00 € | | | 29056-000432025 | A | 35-65 | - | - | 43 | 5 | 11,5 | semi-gloss vibratory ground | | | 0.00 € | | | 29056-000433035 | A | 35-65 | - | - | 43 | 5 | 11,5 | self-tapping | | | 0.00 € | | | 29056-000441232 | A | 35-65 | - | - | 44,5 | 5 | 11,5 | Sensor | | | 0.00 € | | | 29056-000450830 | A | 35-65 | - | - | 45 | 5 | 11,5 | self-locking | | | 0.00 € | | | 29056-000453050 | A | 35-65 | - | - | 45 | 5 | 11,5 | Ø45x3-5 | | | 0.00 € | | | 29056-000461535 | A | 35-65 | - | - | 46 | 5 | 11,5 | Semi-permanent scanning spray with the optimised tone cooperative grey;
Maximum contrast for the latest generation of optical measuring systems;
Scan time arbitrary as no sublimation;
Easy removal for residue-free cleaning | | | 0.00 € | | | 29056-000481236 | A | 35-65 | - | - | 48,4 | 6 | 11,5 | self-locking | | | 0.00 € | | | 29056-000482552 | A | 35-65 | - | - | 48,4 | 6 | 11,5 | Self-aligning pad | | | 0.00 € | | | 29056-000501025 | A | 35-65 | - | - | 50 | 5 | 11,5 | Sensor Holder | | | 0.00 € | | | 29056-050400 | A | 35-65 | - | - | 50 | 5 | 11,5 | Ø50x2,5-4,5 | | | 0.00 € | | | 29056-000521535 | A | 35-65 | - | - | 52 | 5 | 14,5 | separable | | | 0.00 € | | | 29056-000551030 | A | 35-65 | - | - | 55 | 5 | 14,5 | Ø55x1-3 | | | 0.00 € | | | 29056-000553050 | A | 35-65 | - | - | 55 | 5 | 14,5 | Ø55x3-5 | | | 0.00 € | | | 29056-000601030 | A | 35-65 | - | - | 60 | 5 | 18 | Ø60x1-3 | | | 0.00 € | | | 29056-000603050 | A | 35-65 | - | - | 60 | 5 | 18 | Ø60x3-5 | | | 0.00 € | | | 29056-000631535 | A | 35-65 | - | - | 63,5 | 5 | 21 | self adhesive | | | 0.00 € | | | 29056-000651535 | A | 35-65 | - | - | 65 | 5 | 21 | Self-aligning pad | | | 0.00 € | | | 29056-000653050 | A | 35-65 | - | - | 65 | 5 | 21 | Ø65x3-5 | | | 0.00 € | | | 29056-000701035 | A | 35-65 | - | - | 70 | 5 | 21 | Series 302 | | | 0.00 € | | | 29056-000751035 | A | 35-65 | - | - | 75 | 6 | 21 | Series 303 | | | 0.00 € | | | 29056-000753050 | A | 35-65 | - | - | 75 | 6 | 21 | Ø75x3-5 | | | 0.00 € | | | 29056-000761540 | A | 35-65 | - | - | 76,2 | 6 | 21 | serrated | | | 0.00 € | | | 29056-000803055 | A | 35-65 | - | - | 80 | 6 | 21 | serrated | | | 0.00 € | | | 29056-000851540 | A | 35-65 | - | - | 85 | 6 | 21 | Series 320 (ISO dimensions) | | | 0.00 € | | | 29056-000891840 | A | 35-65 | - | - | 88,9 | 6 | 21 | serrated plastic sleeve | | | 0.00 € | | | 29056-000901540 | A | 35-65 | - | - | 90 | 6 | 21 | serrated | | | 0.00 € | | | 29056-000951540 | A | 35-65 | - | - | 95 | 6 | 21 | set | | | 0.00 € | | | 29056-001001540 | A | 35-65 | - | - | 100 | 6 | 28 | Set contents | | | 0.00 € | | | 29056-413130520 | B | Worm Drive | 13 | - | - | 4 | 11,5 | 13x13x0,5-2 | | | 0.00 € | | | 29056-415150820 | B | Worm Drive | 15 | - | - | 3 | 11,5 | 15x15x0,8-2 | | | 0.00 € | | | 29056-416160820 | B | Worm Drive | 16 | - | - | 5 | 11,5 | 16x16x0,8-2 | | | 0.00 € | | | 29056-418181530 | B | Worm Drive | 18 | - | - | 5 | 11,5 | 18x18x1,5-3 | | | 0.00 € | | | 29056-420100 | B | Worm Drive | 20 | - | - | 5 | 11,5 | 20 x 20 x 0,8-3 | | | 0.00 € | | | 29056-422220830 | B | Worm Drive | 22 | - | - | 5 | 11,5 | 22x22x0,8-3 | | | 0.00 € | | | 29056-425150 | B | Worm Drive | 25 | - | - | 5 | 11,5 | 25 x 25 x 1-3 | | | 0.00 € | | | 29056-428281030 | B | Worm Drive | 28 | - | - | 5 | 11,5 | 28x28x1-3 | | | 0.00 € | | | 29056-430200 | B | Worm Drive | 30 | - | - | 5 | 11,5 | 30 x 30 x 1-2,5 | | | 0.00 € | | | 29056-430302550 | B | Worm Drive | 30 | - | - | 5 | 11,5 | 30x30x2,5-5 | | | 0.00 € | | | 29056-432321035 | B | Worm Drive | 32 | - | - | 5 | 11,5 | 32x32x1-3,5 | | | 0.00 € | | | 29056-434341030 | B | Worm Drive | 34 | - | - | 5 | 14,5 | 34x34x1-3 | | | 0.00 € | | | 29056-435350830 | B | Worm Drive | 35 | - | - | 5 | 14,5 | 35x35x0,8-3 | | | 0.00 € | | | 29056-438381035 | B | Worm Drive | 38 | - | - | 5 | 14,5 | 38x38x1-3,5 | | | 0.00 € | | | 29056-440300 | B | square | 40 | - | - | 5 | 14,5 | 40 x 40 x 1-3 | | | 0.00 € | | | 29056-440400 | B | square | 40 | - | - | 5 | 14,5 | 40 x 40 x 3-5 | | | 0.00 € | | | 29056-445451030 | B | Worm Drive | 45 | - | - | 5 | 14,5 | 45x45x1-3 | | | 0.00 € | | | 29056-445453050 | B | Worm Drive | 45 | - | - | 5 | 14,5 | 45x45x3-5 | | | 0.00 € | | | 29056-448482545 | B | Worm Drive | 48 | - | - | 5 | 14,5 | 48x48x2,5-4,5 | | | 0.00 € | | | 29056-450500830 | B | Worm Drive | 50 | - | - | 5 | 14,5 | 50x50x0,8-3 | | | 0.00 € | | | 29056-450503050 | B | Worm Drive | 50 | - | - | 5 | 14,5 | 50x50x3-5 | | | 0.00 € | | | 29056-452521535 | B | Worm Drive | 52 | - | - | 5 | 14,5 | 52x52x1,5-3,5 | | | 0.00 € | | | 29056-455552045 | B | Worm Drive | 55 | - | - | 5 | 14,5 | 55x55x2-4,5 | | | 0.00 € | | | 29056-460601540 | B | Worm Drive | 60 | - | - | 5 | 21 | 60x60x1,5-4 | | | on request | | | 29056-465652045 | B | Worm Drive | 65 | - | - | 5 | 21 | 65x65x2-4,5 | | | 0.00 € | | | 29056-470702045 | B | Worm Drive | 70 | - | - | 5 | 18,7 | 70x70x2-4,5 | | | 0.00 € | | | 29056-475752045 | B | Worm Drive | 75 | - | - | 6 | 21 | 75x75x2-4,5 | | | 0.00 € | | | 29056-480802045 | B | Worm Drive | 80 | - | - | 6 | 21 | 80x80x2-4,5 | | | 0.00 € | | | 29056-490903050 | B | Worm Drive | 90 | - | - | 6 | 21 | 90x90x3-5 | | | 0.00 € | | | 29056-495953555 | B | Worm Drive | 95 | - | - | 6 | 21 | 95x95x3,5-5,5 | | | 0.00 € | | | 29056-400001040 | B | Worm Drive | 100 | - | - | 7 | 24 | 100x100x1-4 | | | 0.00 € | | | 29056-220100820 | C | Clamping axis | 20 | 10 | - | 3 | 11,5 | 20x10x0,8-2 | | | 0.00 € | | | 29056-220151020 | C | Clamping axis | 20 | 15 | - | 5 | 11,5 | 20x15x1-2 | | | 0.00 € | | | 29056-225100820 | C | Clamping axis | 25 | 10 | - | 3 | 11,5 | 25x10x0,8-2 | | | 0.00 € | | | 29056-225150825 | C | Clamping axis | 25 | 15 | - | 5 | 11,5 | 25x15x0,8-2,5 | | | 0.00 € | | | 29056-225201030 | C | Clamping axis | 25 | 20 | - | 5 | 11,5 | 25x20x1-3 | | | 0.00 € | | | 29056-230100820 | C | Clamping axis | 30 | 10 | - | 3 | 11,5 | 30x10x0,8-2 | | | 0.00 € | | | 29056-230150825 | C | Clamping axis | 30 | 15 | - | 5 | 11,5 | 30x15x0,8-2,5 | | | 0.00 € | | | 29056-230201030 | C | Clamping axis | 30 | 20 | - | 5 | 11,5 | 30x20x1-3 | | | 0.00 € | | | 29056-230250830 | C | Clamping axis | 30 | 25 | - | 5 | 11,5 | 30x25x0,8-3 | | | 0.00 € | | | 29056-235100820 | C | Clamping axis | 35 | 10 | - | 3,5 | 11,5 | 35x10x0,8-2 | | | 0.00 € | | | 29056-235151030 | C | Clamping axis | 35 | 15 | - | 5 | 11,5 | 35x15x1-3 | | | 0.00 € | | | 29056-235200830 | C | Clamping axis | 35 | 20 | - | 5 | 11,5 | 35x20x0,8-3 | | | 0.00 € | | | 29056-235250830 | C | Clamping axis | 35 | 25 | - | 5 | 11,5 | 35x25x0,8-3 | | | 0.00 € | | | 29056-240151020 | C | Clamping axis | 40 | 15 | - | 5 | 11,7 | 40x15x1-2 | | | 0.00 € | | | 29056-240200830 | C | Clamping axis | 40 | 20 | - | 5 | 11,5 | 40x20x0,8-3 | | | 0.00 € | | | 29056-240251035 | C | Clamping axis | 40 | 25 | - | 5 | 11,5 | 40x25x1-3,5 | | | 0.00 € | | | 29056-240301030 | C | Clamping axis | 40 | 30 | - | 5 | 11,5 | 40x30x1-3 | | | 0.00 € | | | 29056-240351030 | C | Clamping axis | 40 | 35 | - | 5 | 11,5 | 40x35x1-3 | | | 0.00 € | | | 29056-245201030 | C | Clamping axis | 45 | 20 | - | 5 | 11,5 | 45x20x1-3 | | | 0.00 € | | | 29056-245250830 | C | Clamping axis | 45 | 25 | - | 5 | 11,5 | 45x25x0,8-3 | | | 0.00 € | | | 29056-245300830 | C | Clamping axis | 45 | 30 | - | 5 | 11,5 | 45x30x0,8-3 | | | 0.00 € | | | 29056-245351035 | C | Clamping axis | 45 | 35 | - | 5 | 11,5 | 45x35x1-3,5 | | | 0.00 € | | | 29056-250100820 | C | Clamping axis | 50 | 10 | - | 3,5 | 11,5 | 50x10x0,8-2 | | | 0.00 € | | | 29056-250200830 | C | Clamping axis | 50 | 20 | - | 5 | 14,5 | 50x20x0,8-3 | | | 0.00 € | | | 29056-250250830 | C | Clamping axis | 50 | 25 | - | 5 | 14,5 | 50x25x0,8-3 | | | 0.00 € | | | 29056-250301030 | C | Clamping axis | 50 | 30 | - | 5 | 14,5 | 50x30x1-3 | | | 0.00 € | | | 29056-250351035 | C | Clamping axis | 50 | 35 | - | 5 | 14,5 | 50x35x1-3,5 | | | 0.00 € | | | 29056-250400830 | C | Clamping axis | 50 | 40 | - | 5 | 14,5 | 50x40x0,8-3 | | | 0.00 € | | | 29056-255401540 | C | Clamping axis | 55 | 40 | - | 5 | 14,5 | 55x40x1,5-4 | | | 0.00 € | | | 29056-260151020 | C | Clamping axis | 60 | 15 | - | 5 | 14,5 | 60x15x1-2 | | | 0.00 € | | | 29056-260201030 | C | Clamping axis | 60 | 20 | - | 5 | 14,5 | 60x20x1-3 | | | 0.00 € | | | 29056-260250830 | C | Clamping axis | 60 | 25 | - | 5 | 14,5 | 60x25x0,8-3 | | | 0.00 € | | | 29056-260301030 | C | Clamping axis | 60 | 30 | - | 5 | 14,5 | 60x30x1-3 | | | 0.00 € | | | 29056-260351535 | C | Clamping axis | 60 | 35 | - | 5 | 14,5 | 60x35x1,5-3,5 | | | 0.00 € | | | 29056-260401030 | C | Clamping axis | 60 | 40 | - | 5 | 14,5 | 60x40x1-3 | | | 0.00 € | | | 29056-260451540 | C | Clamping axis | 60 | 45 | - | 5 | 14,5 | 60x45x1,5-4 | | | 0.00 € | | | 29056-260501535 | C | Clamping axis | 60 | 50 | - | 5 | 14,5 | 60x50x1,5-3,5 | | | 0.00 € | | | 29056-270301030 | C | Clamping axis | 70 | 30 | - | 5 | 14,5 | 70x30x1-3 | | | 0.00 € | | | 29056-270351535 | C | Clamping axis | 70 | 35 | - | 5 | 14,5 | 70x35x1,5-3,5 | | | 0.00 € | | | 29056-270401030 | C | Clamping axis | 70 | 40 | - | 5 | 14,5 | 70x40x1-3 | | | 0.00 € | | | 29056-270502040 | C | Clamping axis | 70 | 50 | - | 5 | 14,5 | 70x50x2-4 | | | 0.00 € | | | 29056-275251025 | C | Clamping axis | 75 | 25 | - | 5 | 14,5 | 75x25x1-2,5 | | | 0.00 € | | | 29056-275500825 | C | Clamping axis | 75 | 50 | - | 5 | 14,5 | 75x50x0,8-2,5 | | | 0.00 € | | | 29056-280251030 | C | Clamping axis | 80 | 25 | - | 5 | 14,5 | *80x25x1-3 | | | 0.00 € | | | 29056-280301025 | C | Clamping axis | 80 | 30 | - | 5 | 14,5 | *80x30x1-2,5 | | | 0.00 € | | | 29056-280401030 | C | Clamping axis | 80 | 40 | - | 5 | 14,5 | 80x40x1-3 | | | 0.00 € | | | 29056-280451535 | C | Clamping axis | 80 | 45 | - | 5 | 14,5 | 80x45x1,5-3,5 | | | 0.00 € | | | 29056-280501535 | C | Clamping axis | 80 | 50 | - | 5 | 21,5 | 80x50x1,5-3,5 | | | 0.00 € | | | 29056-280601545 | C | Clamping axis | 80 | 60 | - | 5 | 24 | 80x60x1,5-4,5 | | | 0.00 € | | | 29056-290402040 | C | Clamping axis | 90 | 40 | - | 5 | 14,5 | *90x40x2-4 | | | 0.00 € | | | 29056-290502045 | C | Clamping axis | 90 | 50 | - | 5 | 21,5 | 90x50x2-4,5 | | | 0.00 € | | | 29056-290703055 | C | Clamping axis | 90 | 70 | - | 6 | 21,5 | 90x70x3-5,5 | | | 0.00 € | | | 29056-200301535 | C | Clamping axis | 100 | 30 | - | 5 | 14,5 | *100x30x1,5-3,5 | | | 0.00 € | | | 29056-200401535 | C | Clamping axis | 100 | 40 | - | 5 | 14,5 | *100x40x1,5-3,5 | | | 0.00 € | | | 29056-200501545 | C | Clamping axis | 100 | 50 | - | 5 | 24 | 100x50x1,5-4,5 | | | 0.00 € | | | 29056-200602545 | C | Clamping axis | 100 | 60 | - | 6 | 24,5 | 100x60x2,5-4,5 | | | 0.00 € | | | 29056-200803055 | C | Clamping axis | 100 | 80 | - | 6 | 24 | 100x80x3-5,5 | | | 0.00 € | |
