DescriptionMaterial:Foot plate polyamide
Threaded spindle stainless steel.
Anti-slip plate (NBR) Shore 70.Version:Foot plate blue RAL 5005.
Threaded spindle bright.

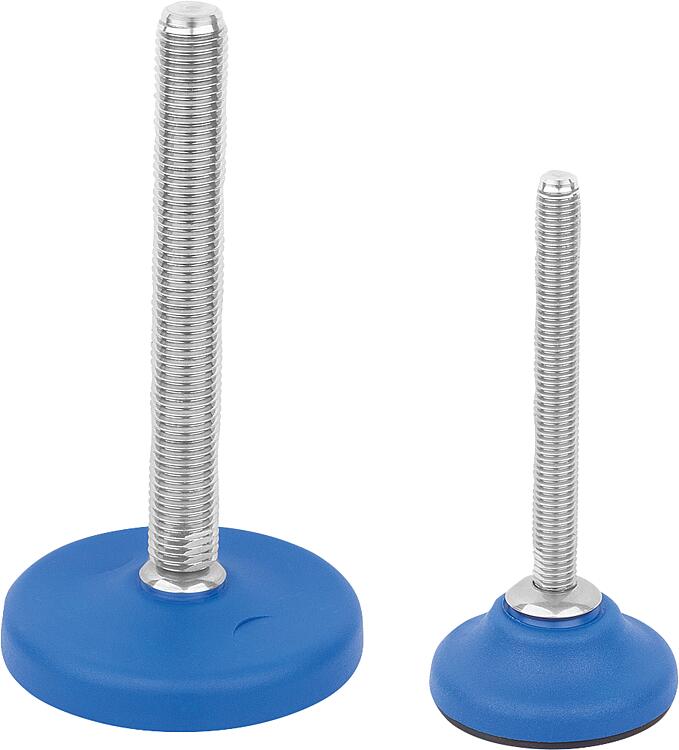

Anti-slip plate, black.Note:Levelling feet with stainless steel spindle, polyamide base and optional anti-slip plate. The anti-slip plate absorbs vibrations and prevents the swivel foot slipping.
The load values specified in the table are based on a test series, in which a static load was applied perpendicular to the plates through the centre of the spindle. Radially acting forces, such as those produced by vibrations or other shaking effects, affect the load rating and are not taken into account for the specified values.On request:Threaded spindle stainless steel 1.4401.
Foot plate black.
with 30° tilt.

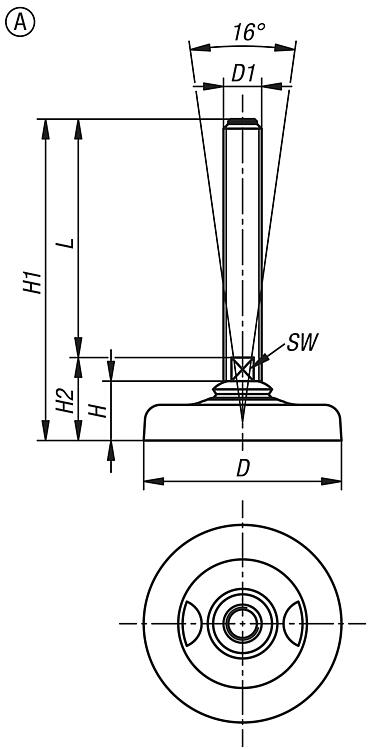

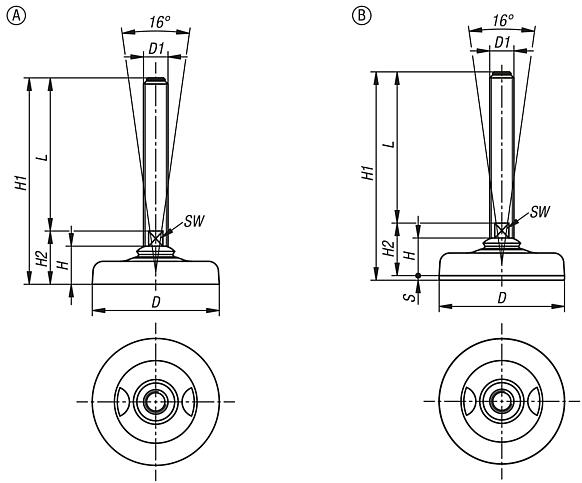

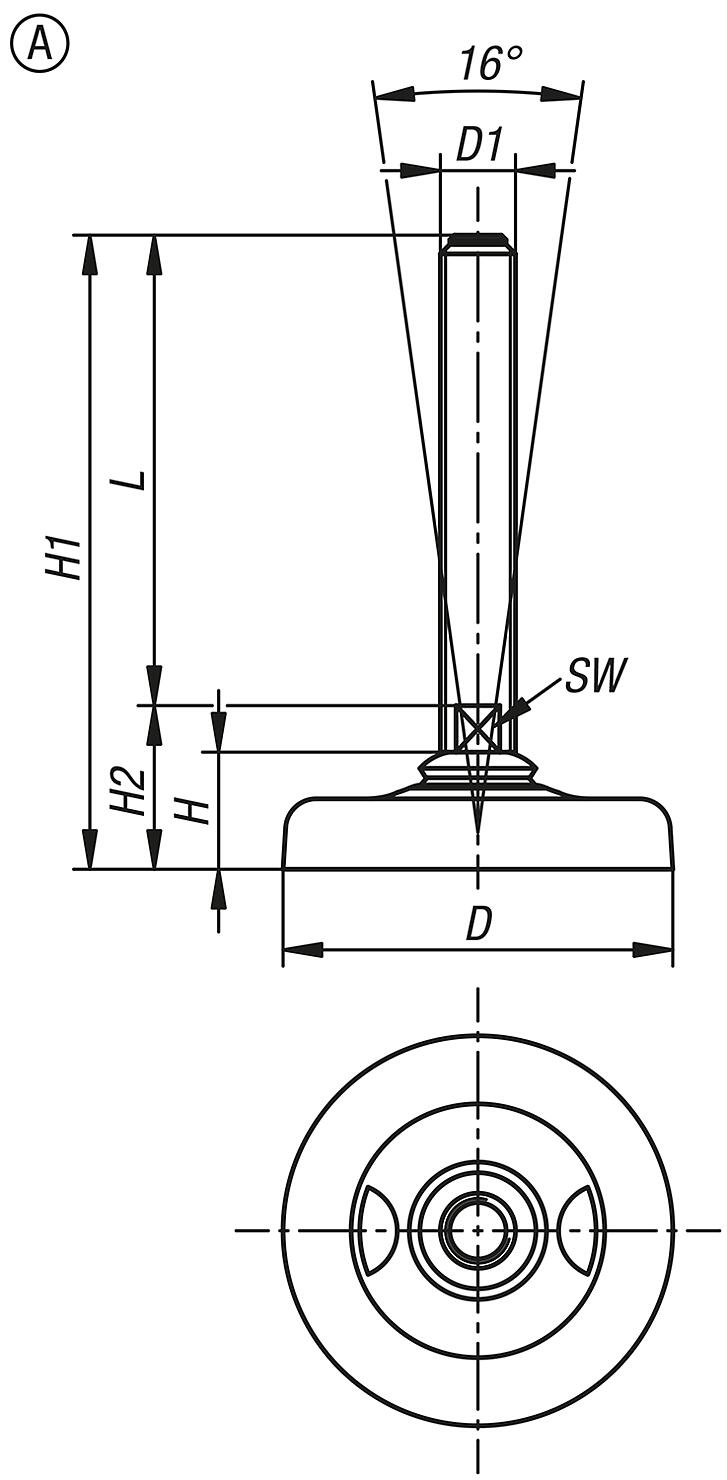

Accessory:Hex nuts 07212.Drawing reference:Form A without anti-slip plate

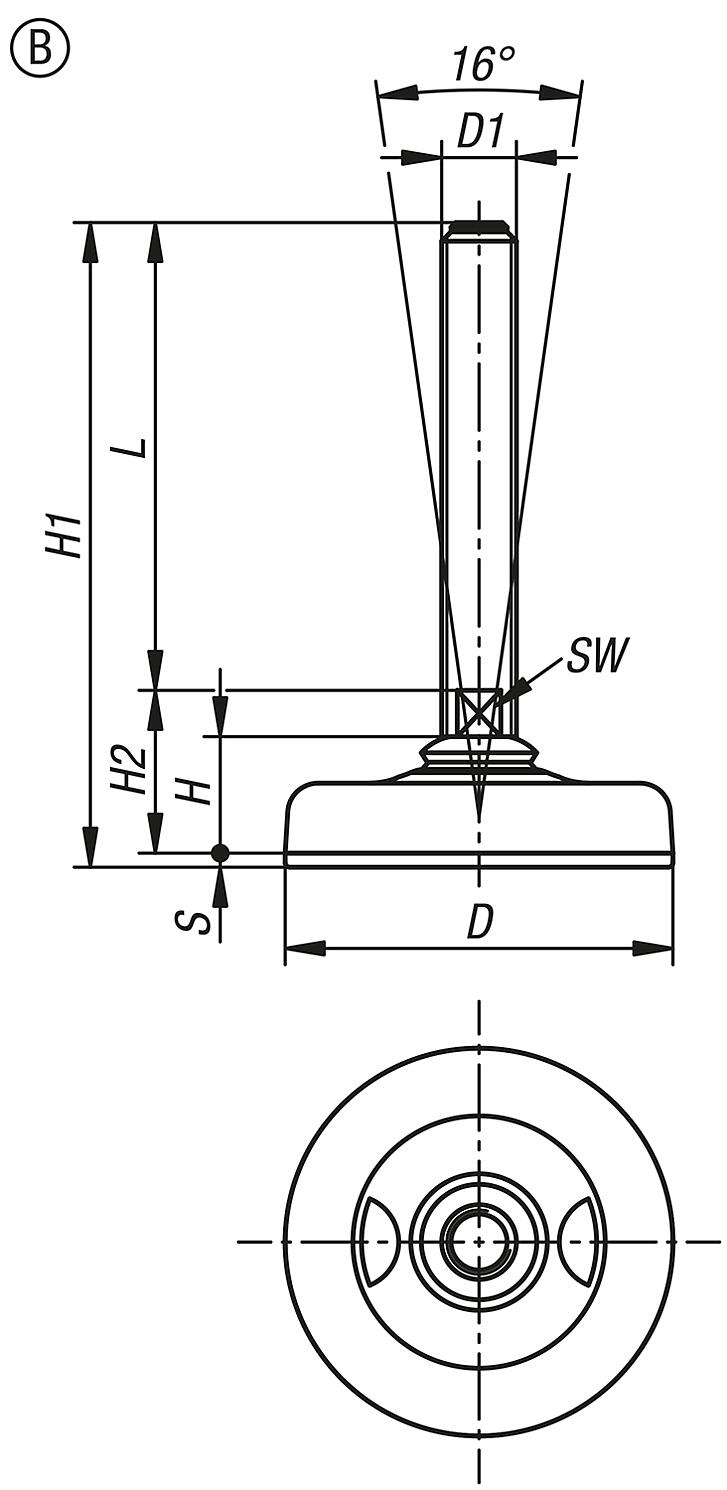

Form B with anti-slip plate
