Spring hinges aluminium profile with damping

go back

Products
- Product overview
  - Systems and components for machine and plant construction
    - Clevis joints Rod ends Ball joints Axial joints Levelling sets Swivel feet Levelling feet Tube-end plugs Equipment feet Hinges
      - Hinges
        Spring hinges aluminium profile with damping

Item description/product images

DescriptionMaterial:Aluminium 6082 T5.Version:Aluminium, transparent anodised.Note:These hinges have integrated damping. This enables doors and hatches to be gently opened (Form A) and closed (Form B). In addition, the hinges are equipped with a lift-assist mechanism that facilitates opening doors and hatches.
The hinges are suitable for horizontal and vertical applications.
The direction of the damper is indicated by the arrow in the drawing.
The opening angle is limited to 115° to avoid damaging the damping system.

A faster opening or closing of the doors or hatches must not be forced, as this can damage the damper.
Damping torque from 1.7 to 2.5 Nm.
The spring torque varies depending on the item.:
Opening spring torgue for 27910-8215000: M(180°) : 2.7 Nm / M(65°) : 3.69 Nm.
Opening spring torgue for 27910-8215001: M(180°) : 1.45 Nm / M(65°) : 2.29 Nm.
Closing spring torgue for 27910-8215010: M(0°) : 2.68 Nm / M(115°) : 3.65 Nm.
Closing sppring torgue for 27910-8215011: M(0°) : 1.45 Nm / M(115°): 2.28 Nm.Temperature range:from 0 °C to +40 °C.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 27910 Spring hinges aluminium profile with damping

131 kB

Drawings (total overview)

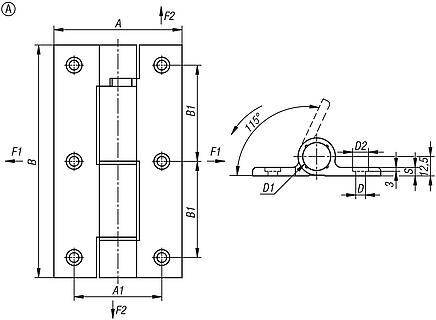

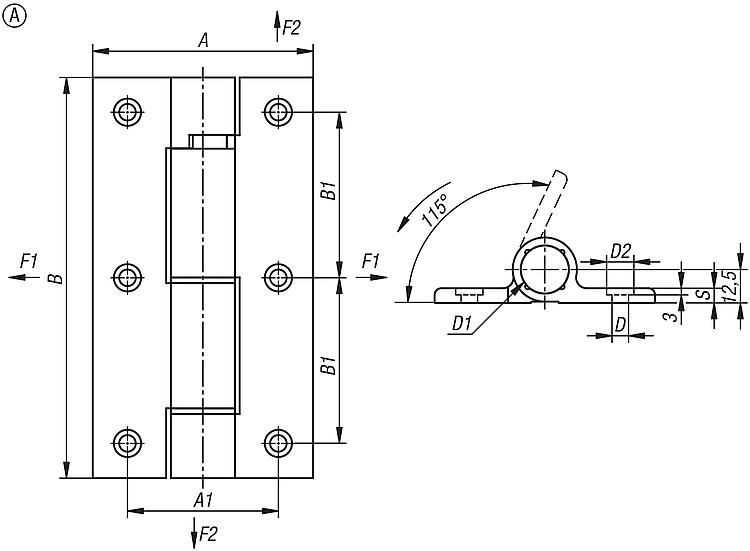

Spring hinges aluminium profile with damping, Form A

More information

Drawings

Item selection/filter

Order No.	Version 1	Version 2	Form	Form definition	A	A1	B	B1	D	D1	F1 N	F2 N	S	CAD	Acc.	Price	Order
27910-8215000	spring open	horizontal use	A	soft opening	82,5	56,5	150	62	6,2	10,2	8000	16000	5,5			94.54 €
27910-8215001	spring open	vertical use	A	soft opening	82,5	56,5	150	62	6,2	10,2	8000	16000	5,5			95.63 €

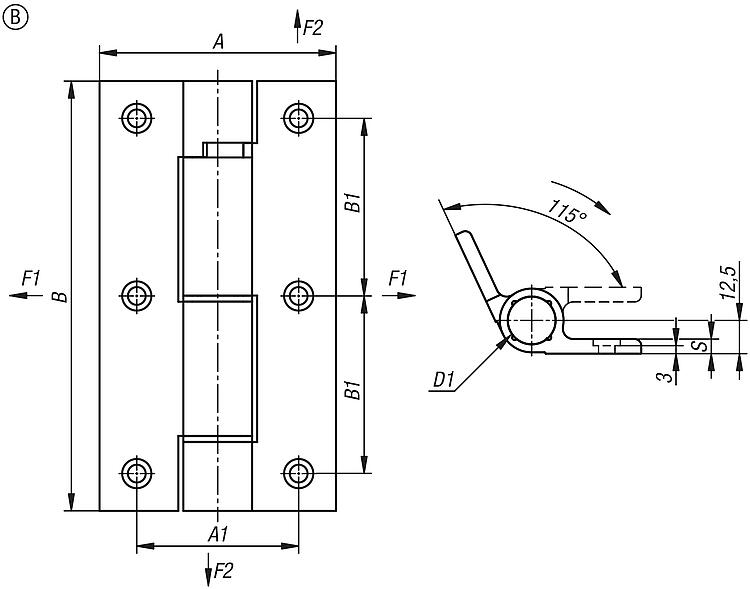

Spring hinges aluminium profile with damping, Form B

More information

Drawings

Item selection/filter

Order No.	Version 1	Version 2	Form	Form definition	A	A1	B	B1	D	D1	F1 N	F2 N	S	CAD	Acc.	Price	Order
27910-8215010	spring closed	horizontal use	B	soft closing	82,5	56,5	150	62	6,2	10,2	8000	16000	5,5			93.08 €
27910-8215011	spring closed	vertical use	B	soft closing	82,5	56,5	150	62	6,2	10,2	8000	16000	5,5			94.62 €
