22421Gear racks steel toothing hardened, straight teeth, engagement... |
go back |
|
Item description/product images |
|
|

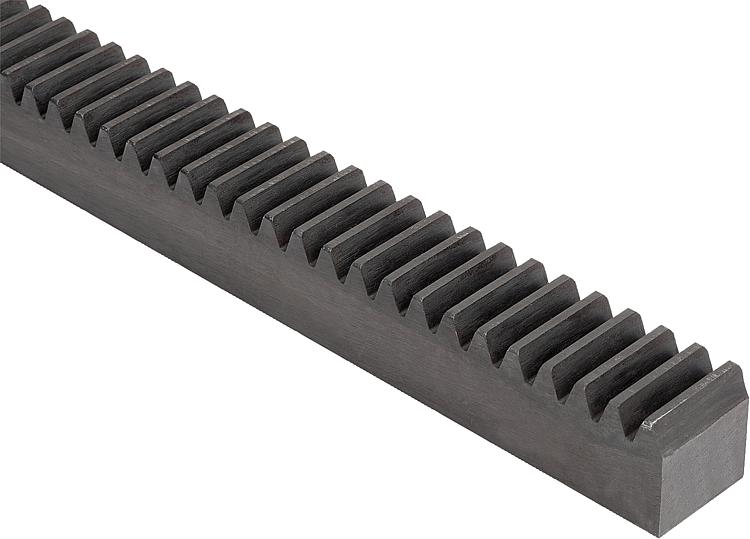

DescriptionMaterial:Steel 1.0503 (C45).Version:Milled toothing, straight teeth
Toothing inductively hardened to 50 +4 HRC.

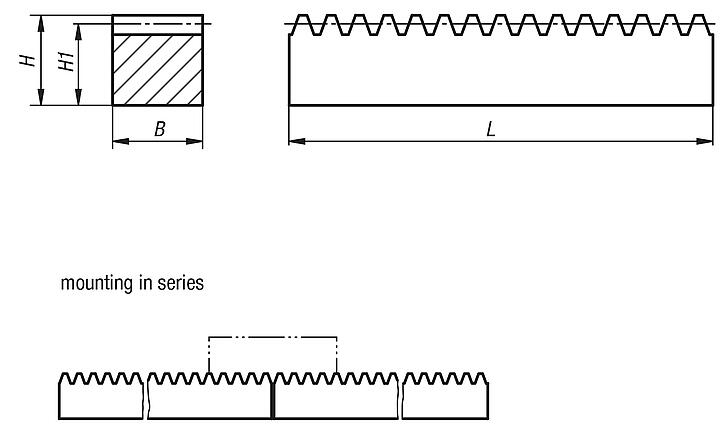

engagement angle 20°, bright.Note:The gear racks are suitable for consecutive mounting.
Hardening changes the toothing quality to ca. 10-11.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Module | B
| H | H1 | L
Nom. length | L
Actual length | CAD | Acc. | Price | Order |
|---|
| 22421-020200X1000 | 2 | 20 | 20 | 18 | 1000 | 1005,31 |  | | 74.82 € | | | 22421-020200X2000 | 2 | 20 | 20 | 18 | 2000 | 2004,34 | | | 114.15 € | | | 22421-025250X1000 | 2,5 | 25 | 25 | 22,5 | 1000 | 1005,31 | | | 106.01 € | | | 22421-025250X2000 | 2,5 | 25 | 25 | 22,5 | 2000 | 2002,77 | | | 180.63 € | | | 22421-030300X1000 | 3 | 30 | 30 | 27 | 1000 | 1008,45 | | | 115.23 € | | | 22421-030300X2000 | 3 | 30 | 30 | 27 | 2000 | 2007,48 | | | 207.37 € | | | 22421-040400X1000 | 4 | 40 | 40 | 36 | 1000 | 1005,31 | | | 156.98 € | | | 22421-040400X2000 | 4 | 40 | 40 | 36 | 2000 | 2010,62 | | | 280.27 € | | | 22421-050500X1000 | 5 | 50 | 50 | 45 | 1000 | 1005,31 | | | 215.54 € | | | 22421-050500X2000 | 5 | 50 | 50 | 45 | 2000 | 2010,62 | | | 417.94 € | | | 22421-060600X1000 | 6 | 60 | 60 | 54 | 1000 | 1017,88 | | | 292.13 € | | | 22421-060600X2000 | 6 | 60 | 60 | 54 | 2000 | 2016,9 | | | 523.11 € | |
