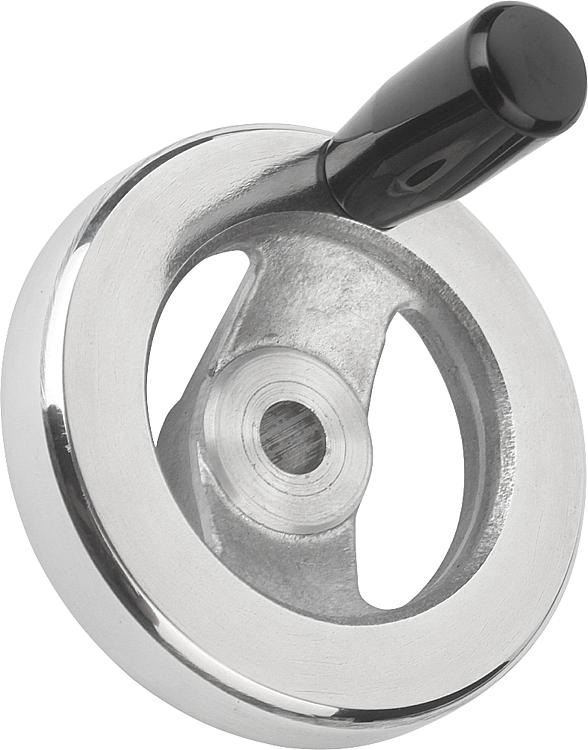

06277_MFG inch2-spoke handwheels, polished aluminium, with fixed cylindrical... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Handwheels aluminium.
Cylinder grip black thermoset PF 31-DIN 7708, centre pin electro zinc-plated steel.Version:Wheel rim turned and polished.
On request:Hubs with square socket or powder-coated handwheels.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| D1 | D2 | D3 | L1 | L3 | Fixed
cylinder
grip | CAD | Acc. | Price | Order |
|---|
| 06277-2080XCN | 80 | 0,312 | 24 | 16 | 28 | ø18 x M6 x 40 |  | | 20.09 € | | | 06277-2080XCO | 80 | 0,375 | 24 | 16 | 28 | ø18 x M6 x 40 | | | 20.09 € | | | 06277-2100XCO | 100 | 0,375 | 26 | 17 | 33 | ø18 x M6 x 40 | | | 22.97 € | | | 06277-2100XCP | 100 | 0,5 | 26 | 17 | 33 | ø18 x M6 x 40 | | | 22.97 € | | | 06277-2125XCO | 125 | 0,375 | 31 | 18 | 33,5 | ø21 x M8 x 50 | | | 26.82 € | | | 06277-2125XCP | 125 | 0,5 | 31 | 18 | 33,5 | ø21 x M8 x 50 | | | 26.82 € | | | 06277-2160XCP | 160 | 0,5 | 36 | 20 | 39 | ø26 x M10 x 80 | | | 35.81 € | | | 06277-2160XCQ | 160 | 0,625 | 36 | 20 | 39 | ø26 x M10 x 80 | | | 35.81 € | | | 06277-2200XCQ | 200 | 0,625 | 42 | 24 | 45 | ø26 x M10 x 80 | | | 51.88 € | | | 06277-2200XCR | 200 | 0,75 | 42 | 24 | 45 | ø26 x M10 x 80 | | | 51.88 € | | | 06277-2250XCR | 250 | 0,75 | 48 | 28 | 51 | ø28 x M12 x 90 | | | 76.92 € | | | 06277-2250XCV | 250 | 0,875 | 48 | 28 | 51 | ø28 x M12 x 90 | | | 76.92 € | |
