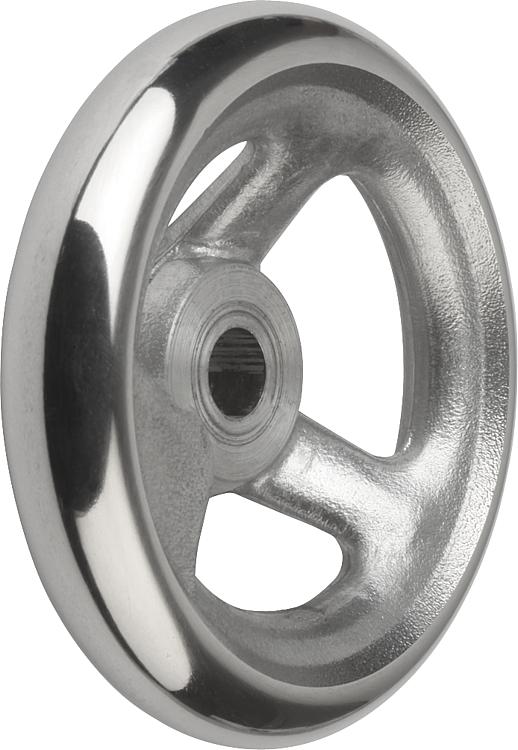

06273 inchHandwheels DIN 950, aluminium, without grip - inch |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Handwheel aluminium, axle steel, black oxidised.Version:Wheel rim turned and polished.
On request:Hubs with square socket or powder-coated handwheels. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | D1 | D2 | D3 | L1 | L3 | No. of
spokes
| CAD | Acc. | Price | Order |
|---|
| 06273-0080XCN | 80 | 0,312 | 24 | 16 | 29 | 3 |  | | 13.18 € | | | 06273-0080XCO | 80 | 0,375 | 24 | 16 | 29 | 3 | | | 13.18 € | | | 06273-0100XCO | 100 | 0,375 | 26 | 17 | 33 | 3 | | | 14.35 € | | | 06273-0100XCP | 100 | .500 | 26 | 17 | 33 | 3 | | | 14.35 € | | | 06273-0125XCO | 125 | 0,375 | 28 | 18 | 36 | 3 | | | 18.07 € | | | 06273-0125XCP | 125 | 0,5 | 28 | 18 | 36 | 3 | | | 18.07 € | | | 06273-0140XCP | 140 | 0,5 | 30 | 19 | 39 | 3 | | | 21.47 € | | | 06273-0140XCQ | 140 | 0,625 | 30 | 19 | 39 | 3 | | | 21.47 € | | | 06273-0160XCP | 160 | 0,5 | 32 | 20 | 40 | 3 | | | 25.45 € | | | 06273-0160XCQ | 160 | 0,625 | 32 | 20 | 40 | 3 | | | 25.45 € | | | 06273-0180XCP | 180 | 0,5 | 37 | 22 | 43 | 3 | | | 30.74 € | | | 06273-0180XCQ | 180 | 0,625 | 37 | 22 | 43 | 3 | | | 30.74 € | | | 06273-0200XCQ | 200 | 0,625 | 38 | 24 | 45 | 3 | | | 38.03 € | | | 06273-0200XCR | 200 | 0,75 | 38 | 24 | 45 | 3 | | | 38.03 € | | | 06273-0250XCR | 250 | 0,75 | 45 | 28 | 50 | 5 | | | 62.41 € | | | 06273-0250XCV | 250 | 0,875 | 45 | 28 | 50 | 5 | | | 62.41 € | | | 06273-0315XCV | 315 | 0,875 | 54 | 33 | 56 | 5 | | | 100.08 € | | | 06273-0315XCS | 315 | 1 | 54 | 33 | 56 | 5 | | | 100.08 € | | | 06273-0400XCS | 400 | 1 | 65 | 38 | 63 | 5 | | | 184.67 € | | | 06273-0500XCS | 500 | 1 | 78 | 45 | 72 | 5 | | | 311.25 € | |
