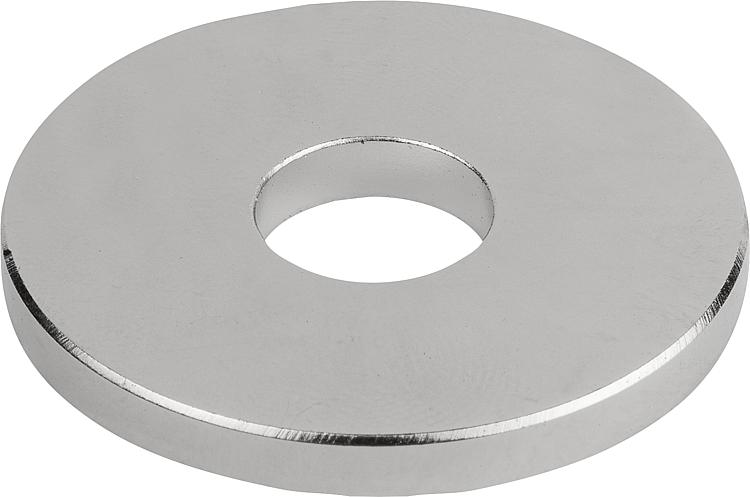

        Magnets raw, Form B with hole, NdFeB, disc form

Item description/product images

DescriptionMaterial:NdFeB (neodymium).Version:Electro zinc-plated.Note:Unshielded system.Temperature range:max. 80°C.Assembly:The magnets can be mounted by press-fit, screwing-in or gluing.Drawing reference:

1) magnetic face

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 09001_B Magnets raw, Form B with hole, NdFeB, disc form

123 kB

Drawings

Item selection/filter

Order No.	Form	D	D1	H	Tightening torque max. Nm	Magnetic force N	Price
09001-32	B	32 ±0,1	10,5 ±0,1	2 ±0,1	3	42	7.08 €
09001-38	B	38 ±0,1	12 ±0,1	4 ±0,1	3	110	12.13 €
09001-48	B	48 ±0,2	15 ±0,1	5 ±0,1	3	165	18.91 €
09001-56	B	56 ±0,2	15 ±0,1	6 ±0,1	3	230	31.91 €
