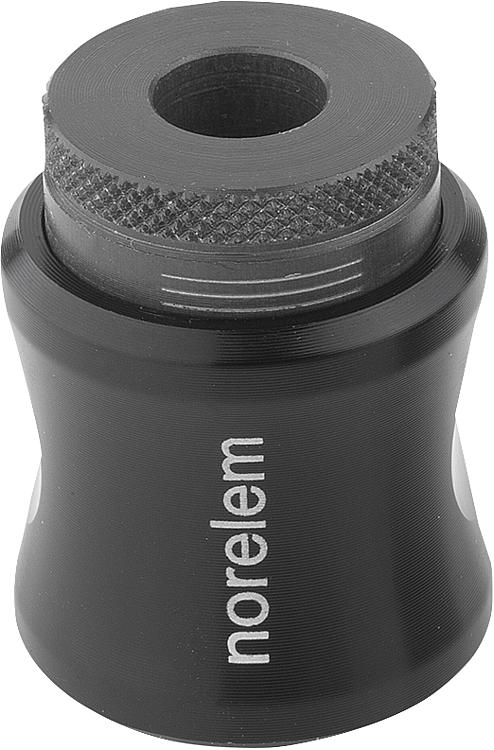

        Torque grips, precision version
        Torque grips precision version, internal thread

Item description/product images

DescriptionMaterial:Grip and set screw aluminium.
Bush steel 5.8.Version:Grip and set screw anodised.

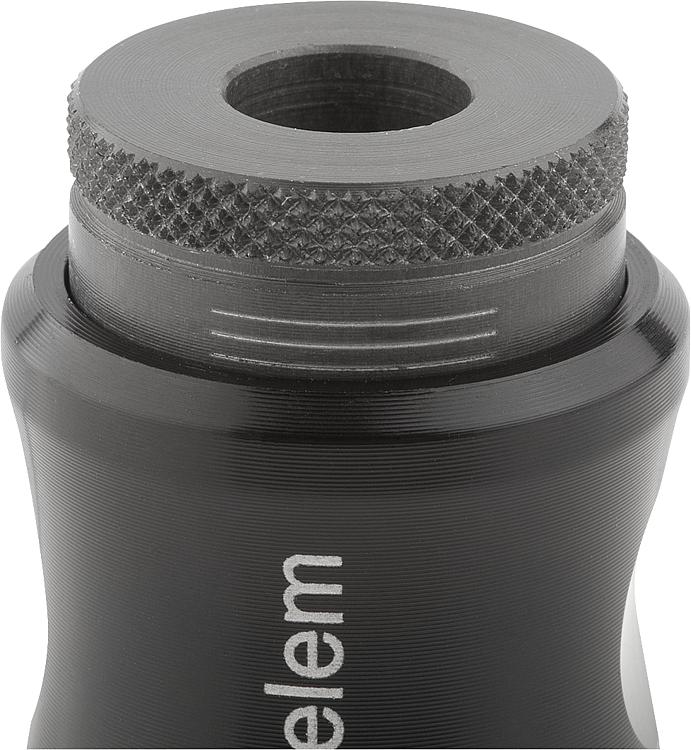

Bush black oxidised.Note:The required torque is set by a set screw and a graduated scale. The set value can be secured using the lateral clamping screw. When the set torque is reached the grip audibly and palpably releases. The loosening torque is higher than the tightening torque so that the torque handle can be released without any problems.

The internal thread version has a hole in the set screw so that the torque handle can also be used on threaded rods.

Set torque accuracy ± 5%.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07124_IG Torque grips precision version, internal thread

373 kB

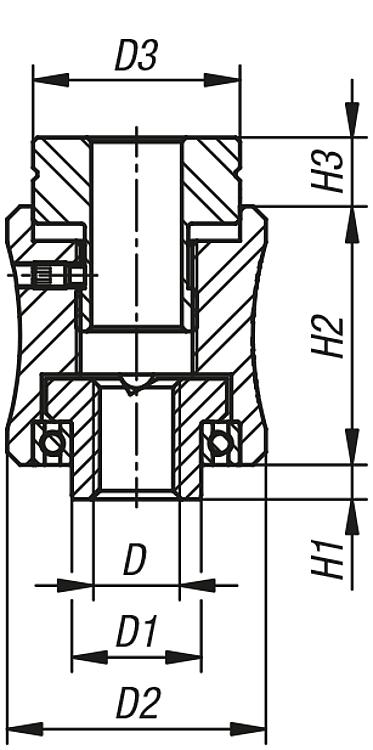

Drawings

Item selection/filter

Order No.	D	D1	D2	D3	H1	H2	H3	Torque Nm	Price
07124-105	M5	10	26	20	2	26	8	0,05 - 0,1	72.04 €
07124-106	M6	10	26	20	2	26	8	0,1 - 0,25	76.41 €
07124-208	M8	15	30	24	4	30	8	0,25 - 0,5	80.79 €
07124-210	M10	15	30	24	4	30	8	0,5 - 1	85.12 €
