Item description/product images

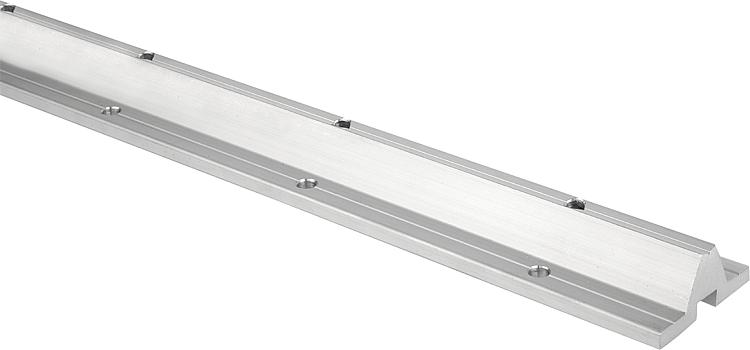

DescriptionMaterial:Aluminium.Version:Bright.Note:Shaft supports are required to support shafts in conjunction with open linear ball bearings.
Shafts supported along the entire length result in particularly rigid assemblies, in many cases however, sectional supports suffice.
The standard length of our shaft supports is 600 mm. These can be shortened or set in series to produce longer supports.
Accessory:Precision guide shafts with fastening holes 21590.
Fastening screws 07160.
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet 21565 Shaft supports 115 kB

Drawings

Shaft supports

Item selection/filter

Order No.SizeABD

D1EE1G
hole for
DIN 912 cap screw
HH1H2WCADAcc.PriceOrder
21565-12375X060012408124,52975M4x1622555,8  69.74 €
21565-16500X060016459,5165,533100M5x2026567  72.25 €
21565-20500X0600205211206,637100M6x253266,58,3  81.44 €
21565-25600X0600255714256,642120M8x253668,510,8  86.74 €
21565-30750X060030691730951150M10x3042710,511  91.22 €
21565-40100X060040731740955200M10x3050810,515 88.98 €
21565-50100X0600508419501163200M12x3060912,519 109.95 €
